FX10 Series

Catalog

CONN INTERPOSER 144P STACK GOLD

Part	Pitch	Pitch	Number of Rows [custom]	Number of Positions	Mated Stacking Heights [Max]	Mated Stacking Heights [Min]	Connector Type	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Features
Hirose Electric Co Ltd FX10-144IP-44Q-8PH(03)	0.02 "	0.5 mm	2	144	13 mm	11 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám

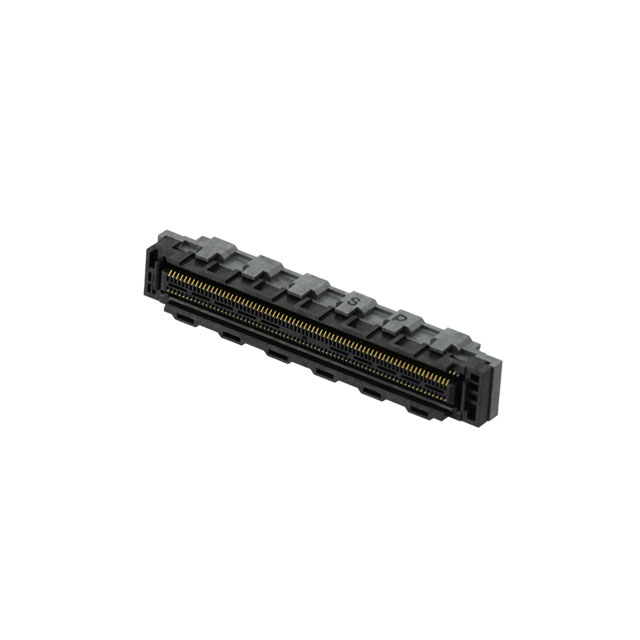

Hirose Electric Co Ltd FX10-144IP-8PH(03)	0.02 "	0.5 mm	2	144	13 mm	11 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám

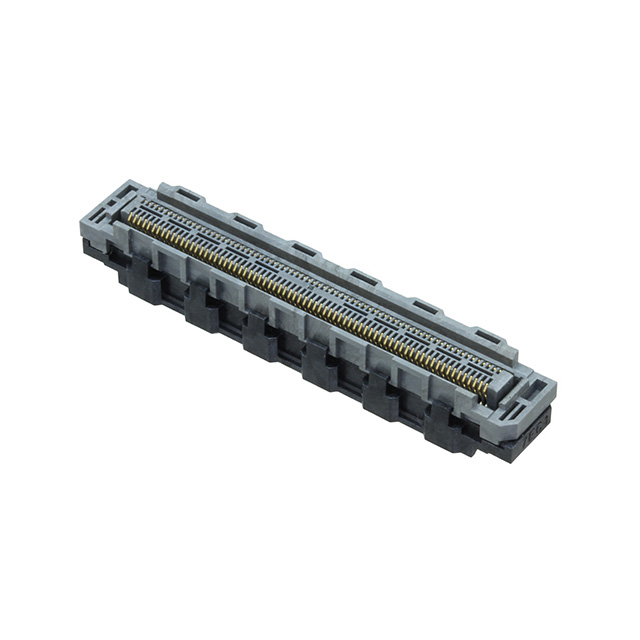

Hirose Electric Co Ltd FX10-144IP-32D-8H(03)	0.02 "	0.5 mm	2	144	10 mm	8 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám
Hirose Electric Co Ltd FX10-168IP-8H(03)	0.02 "	0.5 mm	2		10 mm	8 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám	168

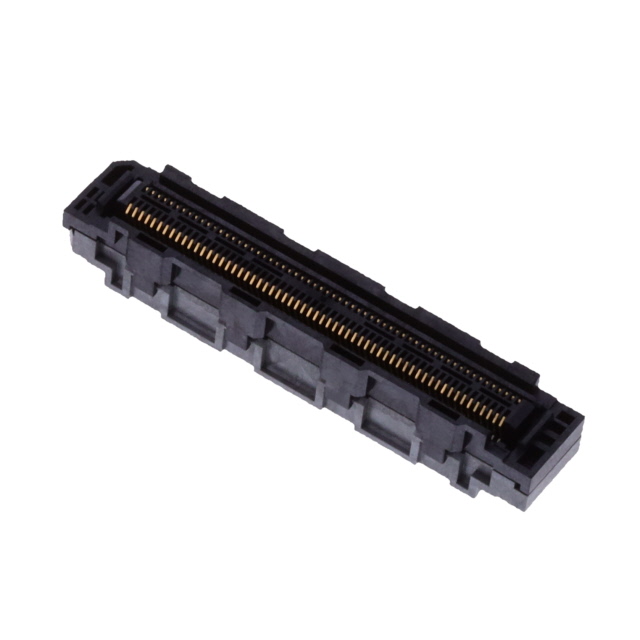

Hirose Electric Co Ltd FX10-120IP-28D-8PH(03)	0.02 "	0.5 mm	2	120	13 mm	11 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám
Hirose Electric Co Ltd FX10-144IP-32D-8PH(03)	0.02 "	0.5 mm	2	144	13 mm	11 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám
Hirose Electric Co Ltd FX10B-96S-SV	0.02 "	0.5 mm	2	96			Receptacle Center Strip Contacts	Surface Mount	Gold	4 Áin	0.1 Ám		0.126 in	3.2 mm	4 mm 5 mm	Solder Retention
Hirose Electric Co Ltd FX10B-80P/8-SV1(71)	0.02 "	0.5 mm	2	80			Header Outer Shroud Contacts	Surface Mount	Gold	4 Áin	0.1 Ám		0.177 in	4.5 mm	5 mm	Ground Plate Solder Retention

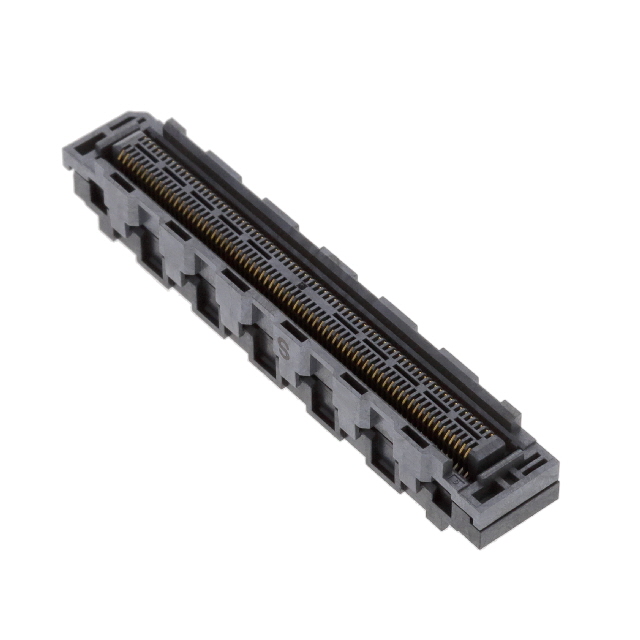

Hirose Electric Co Ltd FX10-144IP-8H(03)	0.02 "	0.5 mm	2	144	10 mm	8 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám

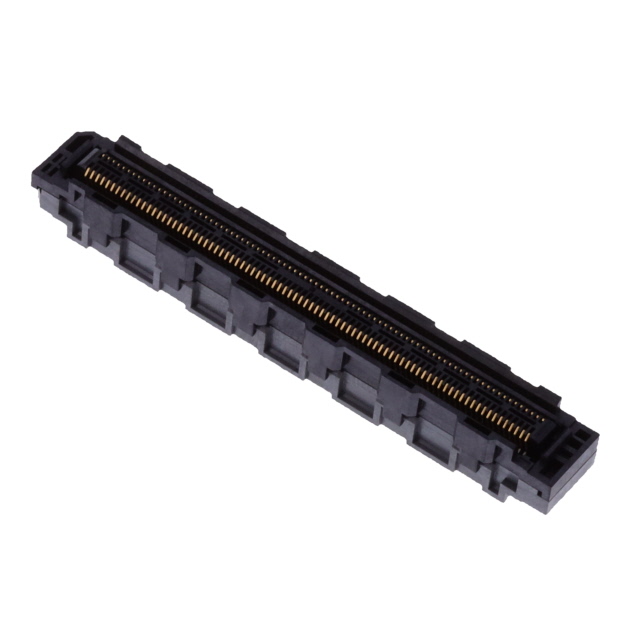

Hirose Electric Co Ltd FX10-168IP-8PH(03)	0.02 "	0.5 mm	2		13 mm	11 mm	Interposer	Stacking	Gold	30 Áin	0.76 Ám	168
