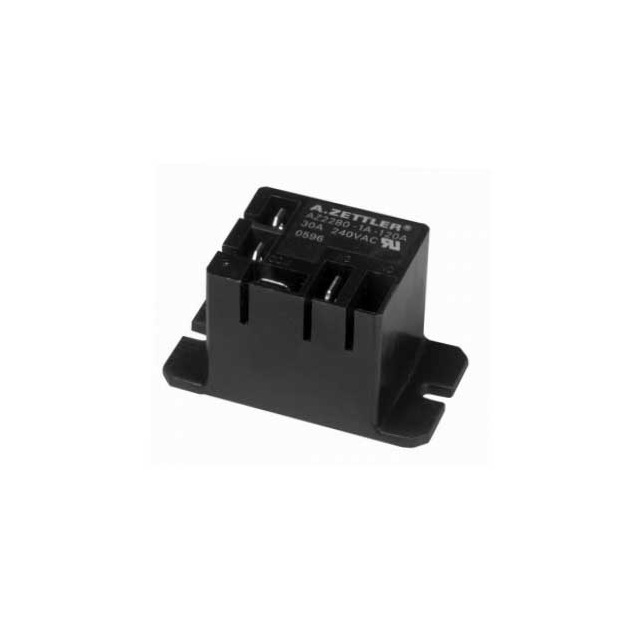

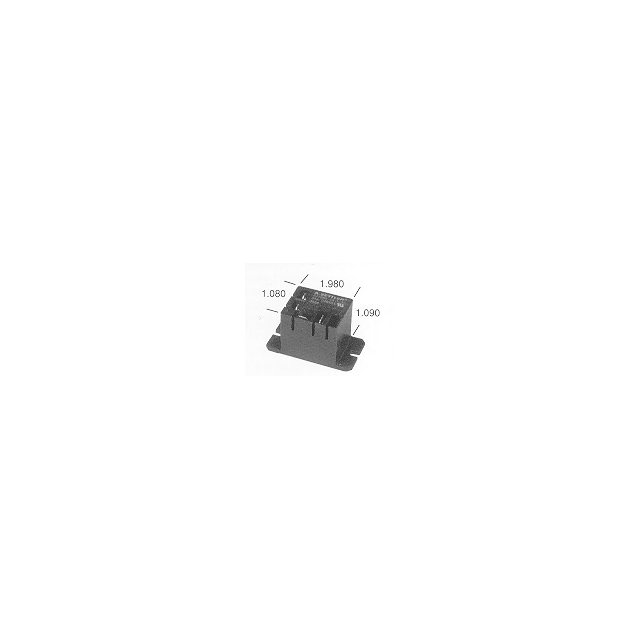

AZ2280-1C Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 28V
| Part | Coil Type | Operate Time | Approval Agency | Mounting Type | Contact Material | Coil Insulation | Must Release Voltage | Coil Voltage | Termination Style | Termination Style | Contact Form | Relay Type | Load - Max Switching | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Switching Voltage | Coil Resistance | Coil Current | Seal Rating | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Tin Oxide (AgSnO) | Class F | 2.8 VDC | 28 VDC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 85 °C | 20 A | 28 VDC 277 VAC | ||||
American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Tin Oxide (AgSnO) | Class F | 1.5 VDC | 15 VDC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 85 °C | 20 A | 28 VDC 277 VAC | 256 Ohms | 59 mA | Sealed - Fully | 11.25 VDC |
 American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Class F | 2.4 VDC | 24 VDC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 85 °C | 20 A | 28 VDC 277 VAC | 660 Ohms | 36 mA | Sealed - Fully | 18 VDC |
 American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Class F | 4.8 VAC | 24 VAC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 60 °C | 20 A | 28 VDC 277 VAC | 100 Ohms | 240 mA | Sealed - Fully | |
American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Tin Oxide (AgSnO) | Class F | 0.5 VDC | 5 VDC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 85 °C | 20 A | 28 VDC 277 VAC | 27 Ohms | 185 mA | 3.75 VDC | |
 American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Tin Oxide (AgSnO) | Class F | 55.4 VAC | 277 VAC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 60 °C | 20 A | 28 VDC 277 VAC | 15 kOhms | 18.5 mA | 235.4 VAC | |
American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Class F | 55.4 VAC | 277 VAC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 60 °C | 20 A | 28 VDC 277 VAC | 15 kOhms | 18.5 mA | 235.4 VAC | |
American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Class F | 24 VAC | 120 VAC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 60 °C | 20 A | 28 VDC 277 VAC | 2500 Ohms | 48 mA | 102 VAC | |
 American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Class F | 48 VAC | 240 VAC/DC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 60 °C | 20 A | 28 VDC 277 VAC | 13.49 kOhms | 17.8 mA | 187 VAC | |
American Zettler | Non Latching | 15 ms | cUR UL VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Class F | 55.4 VAC | 277 VAC | 0.187 in 0.25 in | Quick Connect | SPDT (1 Form C) | General Purpose | 840 W 11080 VA | 10 ms | -55 C | 60 °C | 20 A | 28 VDC 277 VAC | 15 kOhms | 18.5 mA | 235.4 VAC |
