UCW Series

Manufacturer: Nichicon

Catalog

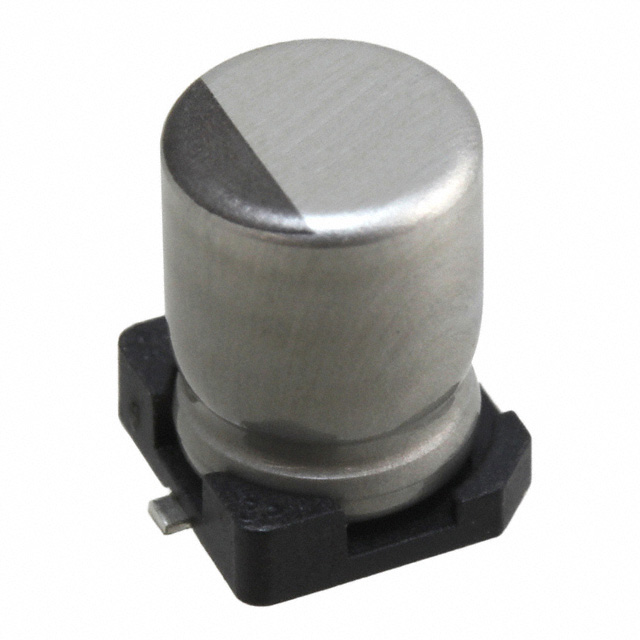

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 10 ΜF, 35 V, 2000 HOURS @ 85°C, POLAR

Part	Capacitance	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Applications	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Tolerance	Package / Case	Lifetime @ Temp.	Polarization	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UCW1V100MCL1GS	10 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	General Purpose	2.2 Ohms	0.276 in	7 mm	Surface Mount	AEC-Q200	105 ░C	-25 °C	95 mA	0.197 in	5 mm	47.5 mA	20 %	Radial Can - SMD	7000 Hrs	Polar	35 V
Nichicon UCW1C331MNL1GS	330 µF	8.3 mm	8.3 mm	General Purpose	220 mOhms	0.394 in	10 mm	Surface Mount	AEC-Q200	105 ░C	-25 °C	600 mA	0.315 in	8 mm	300 mA	20 %	Radial Can - SMD	7000 Hrs	Polar	16 V	0.327 in	0.327 in
Nichicon UCW0J470MNL1GS	47 µF	0.209 in 5.3 mm	0.209 in 5.3 mm	General Purpose				Surface Mount		105 ░C	-25 °C	95 mA	0.197 in	5 mm	47.5 mA	20 %	Radial Can - SMD	7000 Hrs	Polar	6.3 VDC			0.287 "	7.3 mm
