L78L Series

Catalog

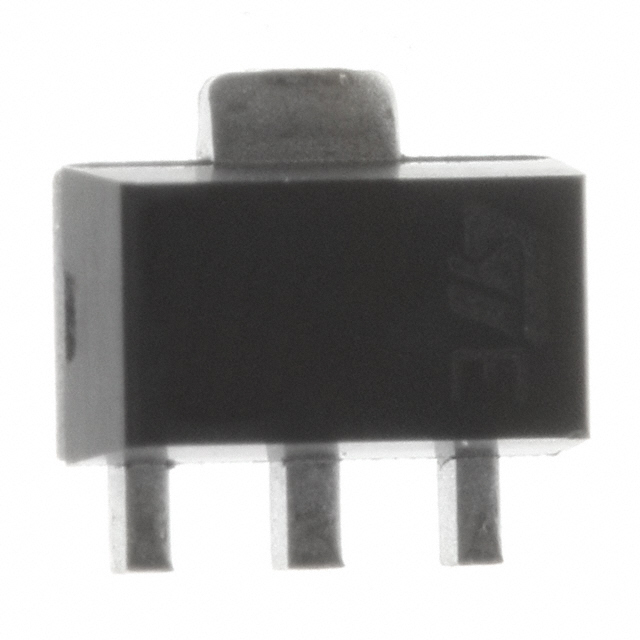

STANDARD REGULATOR POS 6V 0.1A 4-PIN(3+TAB) SOT-89 T/R

Part	Supplier Device Package	Current - Supply (Max) [Max]	Output Configuration	Voltage - Output (Min/Fixed)	PSRR	Protection Features	Number of Regulators	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Current - Quiescent (Iq)	Mounting Type	Package / Case	Package / Case
STMicroelectronics L78L06ACUTR	SOT-89-3	6 mA	Positive	6 V	46 dB	Over Current Over Temperature Short Circuit	1	TO-243AA	30 V	0 °C	125 °C	100 mA	5.5 mA	Surface Mount
STMicroelectronics L78L09ABUTR	SOT-89-3	6 mA	Positive	9 V	44 dB	Over Current Over Temperature Short Circuit	1	TO-243AA	30 V	-40 C	125 °C	100 mA	5.5 mA	Surface Mount
STMicroelectronics L78L12ABUTR	SOT-89-3	6.5 mA	Positive	12 V	42 dB	Over Current Over Temperature Short Circuit	1	TO-243AA	35 V	-40 C	125 °C	100 mA	6 mA	Surface Mount
STMicroelectronics L78L33ACZTR	TO-92-3	6 mA	Positive	3.3 V	49 dB	Over Current Over Temperature Short Circuit	1	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	30 V	0 °C	125 °C	100 mA	5.5 mA	Through Hole
STMicroelectronics L78L33ABZ-AP	TO-92-3	6 mA	Positive	3.3 V	49 dB	Over Current Over Temperature Short Circuit	1	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	30 V	-40 C	125 °C	100 mA	5.5 mA	Through Hole
STMicroelectronics L78L12ABZ-AP	TO-92-3	6.5 mA	Positive	12 V	42 dB	Over Current Over Temperature Short Circuit	1	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	35 V	-40 C	125 °C	100 mA	6 mA	Through Hole
STMicroelectronics L78L12CD13TR	8-SOIC	6 mA	Positive	12 V	42 dB	Over Current Over Temperature Short Circuit	1	8-SOIC	35 V	0 °C	125 °C	100 mA	5.5 mA	Surface Mount	0.154 in	3.9 mm
STMicroelectronics L78L05ABD13TR	8-SOIC	6 mA	Positive	5 V	49 dB	Over Current Over Temperature Short Circuit	1	8-SOIC	30 V	-40 C	125 °C	100 mA	5.5 mA	Surface Mount	0.154 in	3.9 mm
STMicroelectronics L78L08ABUTR	SOT-89-3	6 mA	Positive	8 V	45 dB	Over Current Over Temperature Short Circuit	1	TO-243AA	30 V	-40 C	125 °C	100 mA	5.5 mA	Surface Mount
STMicroelectronics L78L12ACZ-TR	TO-92-3	6.5 mA	Positive	12 V	42 dB	Over Current Over Temperature Short Circuit	1	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	35 V	0 °C	125 °C	100 mA	6 mA	Through Hole
