C8101 Series
Manufacturer: Prysmian Group
Beta
⌘K

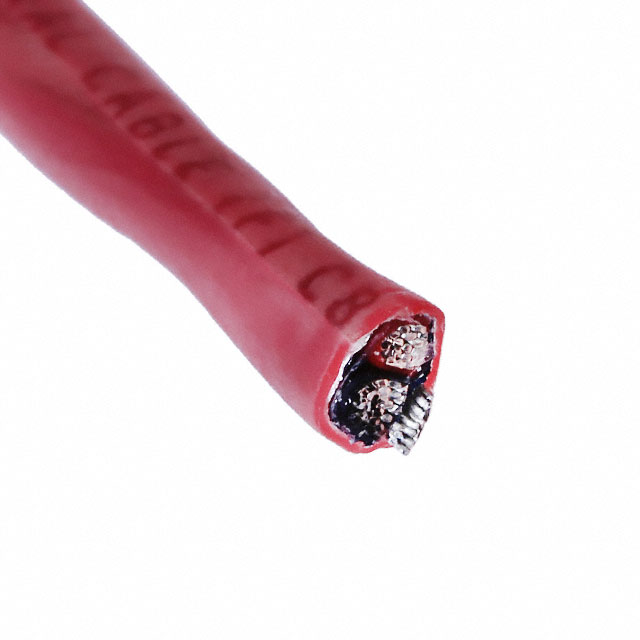

CABLE 2COND 18AWG RED SHLD 500'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Shield Coverage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Features | Wire Gauge | Shield Material | Length | Length | Conductor Insulation | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 4.19 mm | 0.165 in | Fluorinated Ethylene-Propylene (FEP) | Communication Control | 0.406 mm | 0.016 in | 2 | Foil | -40 C | 200 °C | 300 VDC | 100 % | Multi-Conductor | 30 AWG | 19 | Red | Drain Wire | 18 AWG | Flexfoil® | 15.24 m 304.8 m | 50 ft 1000 ft | Fluorinated Ethylene-Propylene (FEP) | Copper Tinned | ||
Prysmian Group | 4.19 mm | 0.165 in | Fluorinated Ethylene-Propylene (FEP) | Communication Control | 0.406 mm | 0.016 in | 2 | Foil | -40 C | 200 °C | 300 VDC | Multi-Conductor | 30 AWG | 19 | Red | Drain Wire | 18 AWG | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Fluorinated Ethylene-Propylene (FEP) | Copper Tinned | 100 ft | 30.5 m |
