LSIC2SD120D Series

Catalog

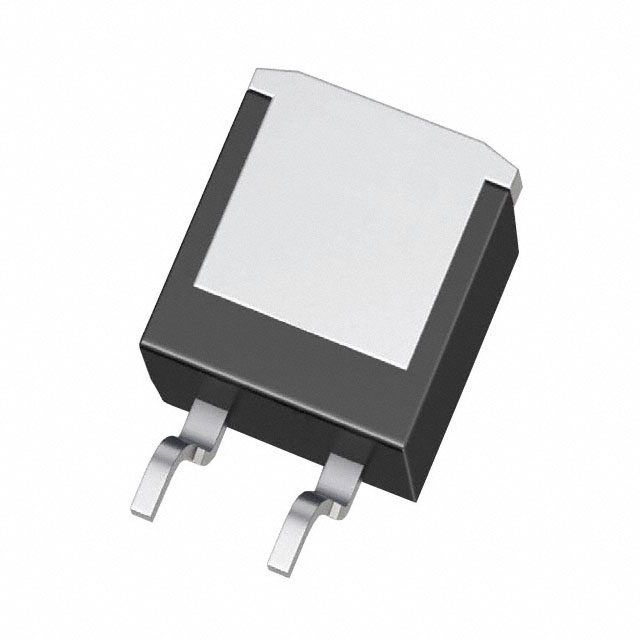

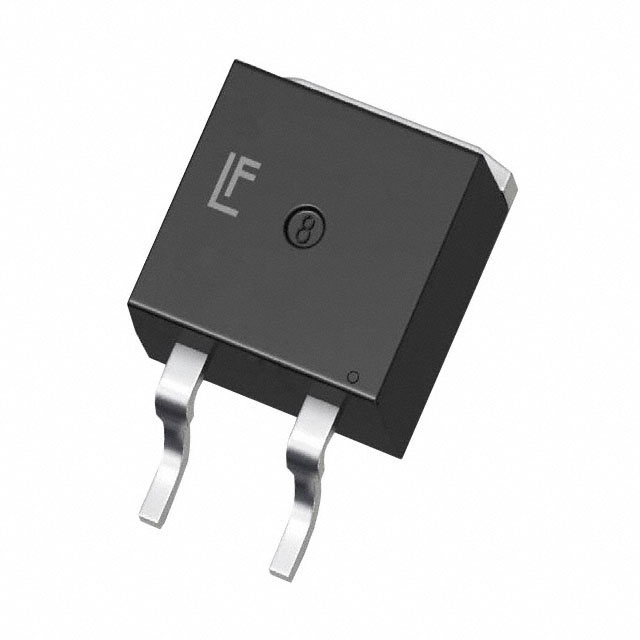

SILICON CARBIDE SCHOTTKY DIODE, SINGLE, 1.2 KV, 54.5 A, 115 NC, TO-263 (D2PAK)

Part	Technology	Capacitance @ Vr, F	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Package / Case
Littelfuse/Commercial Vehicle Products LSIC2SD120D20	SiC (Silicon Carbide) Schottky	1142 pF	Surface Mount	100 µA	TO-263-2L	175 ░C	-55 C	54.5 A	1.2 kV	No Recovery Time	0 ns	1.8 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Littelfuse/Commercial Vehicle Products LSIC2SD120D10	SiC (Silicon Carbide) Schottky	582 pF	Surface Mount	100 µA	TO-263-2L	175 ░C	-55 C	28 A	1.2 kV	No Recovery Time	0 ns	1.8 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
