PIC12C508A Series

Catalog

IC MCU 8BIT 768B OTP 8SOIJ

Part	Package / Case [y]	Package / Case	Package / Case [x]	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Core Processor	Oscillator Type	Program Memory Type	Core Size	Number of I/O	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Program Memory Size	Speed	Package / Case	Package / Case
Microchip Technology PIC12C508AT-04I/SM	5.3 mm	8-SOIC	0.209 "	25 x 8	85 °C	-40 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-SOIJ	5.5 V	3 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12C508-04E/P		8-DIP		25 x 8	125 °C	-40 °C	Through Hole	PIC	Internal	OTP	8-Bit	5	8-PDIP	5.5 V	3 V	POR WDT	768 B	4 MHz	0.3 in	7.62 mm

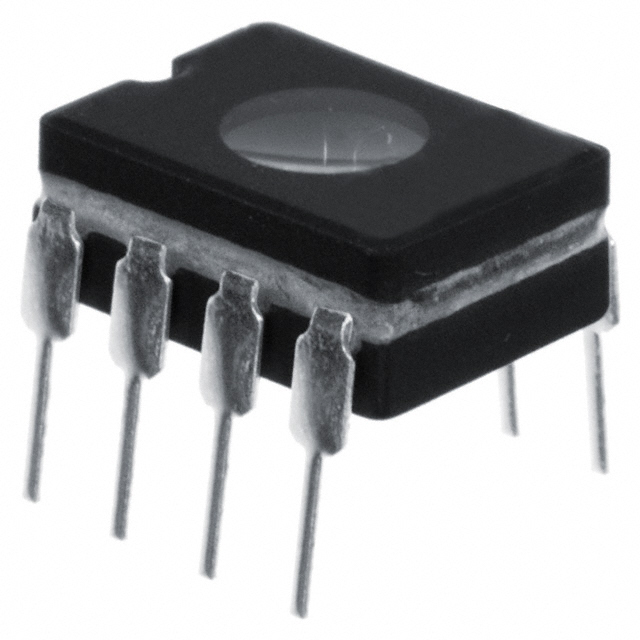

Microchip Technology PIC12C508A/JW				25 x 8	70 °C	0 °C	Through Hole	PIC	Internal	EPROM UV	8-Bit	5	8-CDIP	5.5 V	3 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12C508-04E/SM	5.3 mm	8-SOIC	0.209 "	25 x 8	125 °C	-40 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-SOIJ	5.5 V	3 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12C508T-04I/SM	5.3 mm	8-SOIC	0.209 "	25 x 8	85 °C	-40 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-SOIJ	5.5 V	2.5 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12C508A-04I/P		8-DIP		25 x 8	85 °C	-40 °C	Through Hole	PIC	Internal	OTP	8-Bit	5	8-PDIP	5.5 V	3 V	POR WDT	768 B	4 MHz	0.3 in	7.62 mm
Microchip Technology PIC12C508A-04/SM	5.3 mm	8-SOIC	0.209 "	25 x 8	70 °C	0 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-SOIJ	5.5 V	3 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12LC508A-04I/MF		8-VDFN Exposed Pad		25 x 8	85 °C	-40 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-DFN (3x3)	5.5 V	2.5 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12C508AT-04I/MF		8-VDFN Exposed Pad		25 x 8	85 °C	-40 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-DFN-S (6x5)	5.5 V	3 V	POR WDT	768 B	4 MHz
Microchip Technology PIC12C508-04/SM	5.3 mm	8-SOIC	0.209 "	25 x 8	70 °C	0 °C	Surface Mount	PIC	Internal	OTP	8-Bit	5	8-SOIJ	5.5 V	2.5 V	POR WDT	768 B	4 MHz

Catalog

Key Features

• * 6 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including the internal 4 MHz RC oscillator with programmable calibration, and Power-on Reset.

Description

This powerful (1µsecond instruction execution) yet easy-to-program (only 33 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 8-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.
