TP65H050 Series

Catalog

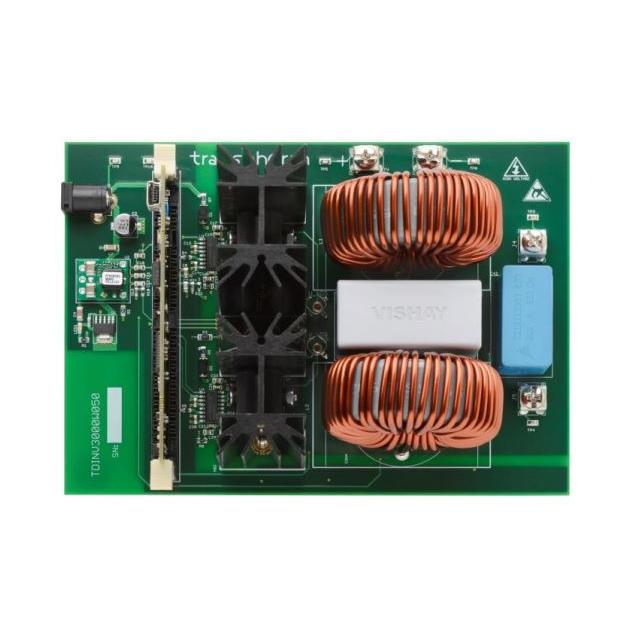

EVAL BOARD FOR TP65H050G4WS

Part	Regulator Topology	Supplied Contents	Board Type	Frequency - Switching	Main Purpose	Voltage - Input	Outputs and Type	Outputs and Type	Power - Output	FET Type	Technology	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Package / Case	Supplier Device Package	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Contents
Renesas Electronics Corporation TDINV3000W050B-KIT	Full-Bridge	Board(s)	Fully Populated	50 kHz	DC/AC Inverter	400 VDC	1	Non-Isolated	3 kW
Renesas Electronics Corporation TP65H050G4WS										N-Channel	GaNFET (Gallium Nitride)	34 A	4.8 V	60 mOhm	119 W	1000 pF	20 V	150 °C	-55 °C	24 nC	Through Hole	TO-247-3	TO-247-3	650 V	10 V
Renesas Electronics Corporation TDINV3000W050B-KIT	Full-Bridge			50 kHz	DC/AC Inverter	400 VDC		1 Non-Isolated Output	3 kW																	Board(s)
Renesas Electronics Corporation TP65H050G4WS										N-Channel	GaNFET (Gallium Nitride)	34 A	4.8 V	60 mOhm	119 W	1000 pF	20 V	150 °C	-55 °C	24 nC	Through Hole	TO-247-3	TO-247-3	650 V	10 V
