CYW20819 Series
Manufacturer: INFINEON
Beta
⌘K
BLUETOOTH MODULE, BLE 5.2, 3 MBPS, -94.5 DBM, 1.71 TO 3.3 V, -30 °C TO 85 °C, AIROC SERIES
| Part | Power - Output | Memory Size | Current - Transmitting [Max] | Current - Transmitting [Min] | Frequency | Data Rate (Max) | Supplier Device Package | Sensitivity | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Modulation | Serial Interfaces | Mounting Type | Type | GPIO | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Receiving [Min] | Current - Receiving [Max] | RF Family/Standard | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

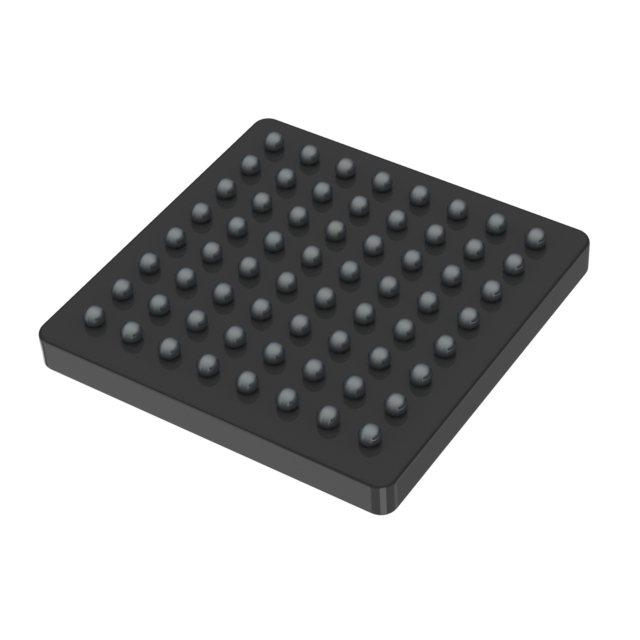

 INFINEON | 5 dBm | 160 kB 256 kB | 11.28 mA | 6.16 mA | 2.4 GHz | 3 Mbps | 62-FBGA (4.5x4.5) | -95 dBm | Bluetooth v5.2 Class 2 | 85 °C | -30 °C | GFSK | GPIO HCI I2C I2S PWM SPI UART | Surface Mount | TxRx + MCU | 22 | 1.26 V | 1.045 V | 6.1 mA | 6.69 mA | Bluetooth General ISM > 1GHz | 62-WFBGA |
 INFINEON | 4.5 dBm | 176 kB 256 kB | 11.28 mA | 6.16 mA | 2.4 GHz | 3 Mbps | 62-FBGA (4.5x4.5) | -95 dBm | Bluetooth v5.2 | 85 °C | -30 °C | GFSK | GPIO HCI I2C I2S JTAG PCM PWM SPI UART | Surface Mount | TxRx + MCU | 22 | 1.26 V | 1.045 V | 6.1 mA | 6.69 mA | Bluetooth | 62-WFBGA |
