06020SS Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, SLEEVE BEARING, 20.48 CFM

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Air Flow	Air Flow	Voltage - Rated	Width [y]	Termination	Static Pressure	Static Pressure	RPM	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Bearing Type	Weight	Weight	Noise	Fan Type	Size / Dimension [z]	Size / Dimension [x]

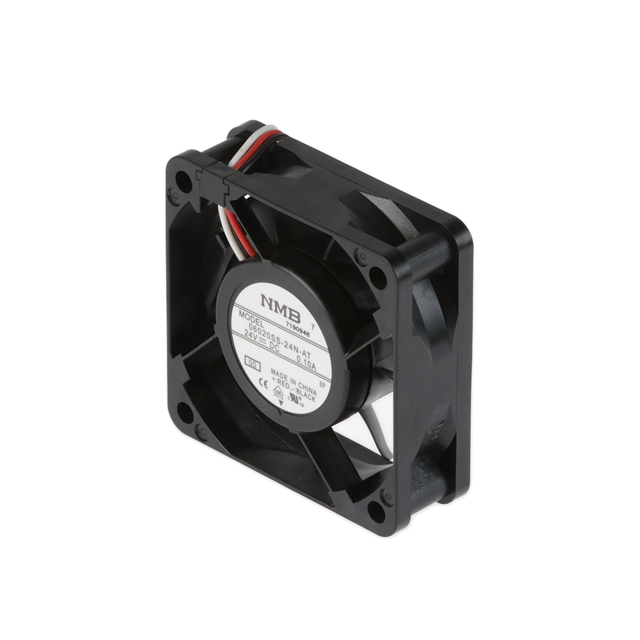

NMB TECHNOLOGIES 06020SS-24N-AT-00	Plastic	Plastic	70 mA	12	27.6 VDC	40 °C 50000 Hrs	20.5 CFM	0.574 m³/min	24 VDC	20 mm	2 Wire Leads	0.2 in H2O	49.8 Pa	4400 RPM	1.68 W	70 °C	-10 °C	Auto Restart	Sleeve	0.124 lb	56.25 g	30.5 dB	Tubeaxial	60 mm	60 mm
NMB TECHNOLOGIES 06020SS-12M-AA-00	Plastic	Plastic		6 VDC	13.8 VDC	40 °C 50000 Hrs	18.4 CFM	0.515 mł/min	12 VDC	20 mm	2 Wire Leads	0.171 in H2O	42.6 Pa	4000 RPM	960 mW	70 °C	-10 °C	Auto Restart	Sleeve			28.5 dB	Tubeaxial	60 mm	60 mm
NMB TECHNOLOGIES 06020SS-12M-AA-00							18.4 CFM	0.515 mł/min	12 VDC	20 mm	2 Wire Leads	0.171 in H2O	42.6 Pa	4000 RPM	960 mW	70 °C	-10 °C	Auto Restart	Sleeve			28.5 dB	Tubeaxial	60 mm	60 mm
