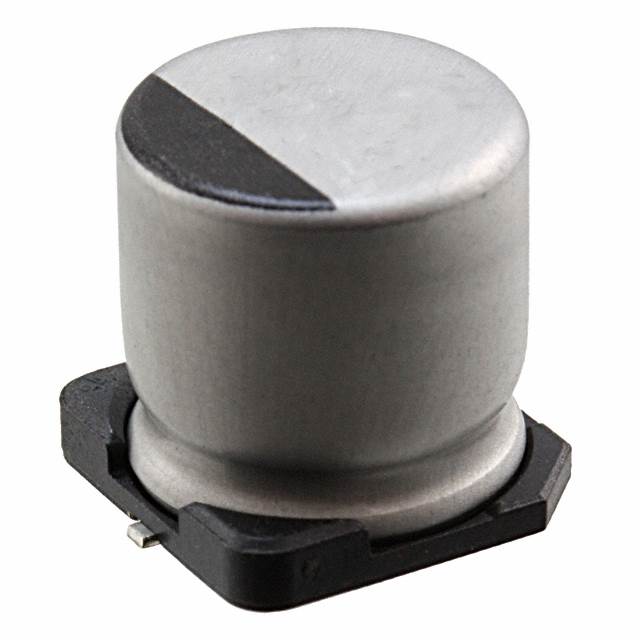

ULR Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 250V 15UF 105C AEC-Q200

Part	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Voltage - Rated	Tolerance	Capacitance	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Ratings	Mounting Type	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Polarization	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon ULR2E150MNL1GS	-40 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	250 V	20 %	15 µF	3000 Hrs	0.394 in	10 mm	AEC-Q200	Surface Mount	General Purpose	50 mA	80 mA	Polar	Radial Can - SMD	11 mm	0.433 in
Nichicon ULR2H3R9MNL1GS	-40 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	500 V	20 %	3.9 µF	3000 Hrs	0.394 in	10 mm	AEC-Q200	Surface Mount	General Purpose	35 mA		Polar	Radial Can - SMD	11 mm	0.433 in

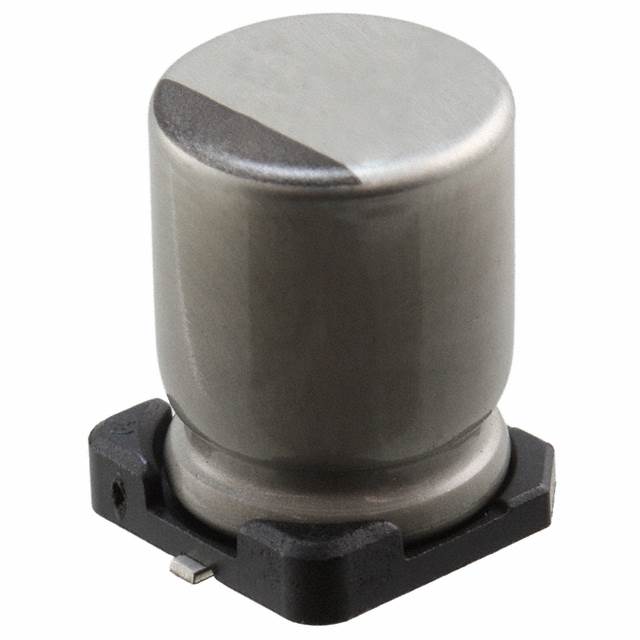

Nichicon ULR2G4R7MNL1GS	-40 C	105 ░C	0.327 in	0.327 in	8.3 mm	8.3 mm	400 V	20 %	4.7 µF	3000 Hrs	0.315 in	8 mm	AEC-Q200	Surface Mount	General Purpose	35 mA		Polar	Radial Can - SMD	11 mm	0.433 in
Nichicon ULR2D220MNL1GS	-40 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	200 VDC	20 %	22 µF	3000 Hrs	0.394 in	10 mm	AEC-Q200	Surface Mount	General Purpose	65 mA	104 mA	Polar	Radial Can - SMD			0.571 "	14.5 mm
Nichicon ULR2D330MNL1GS	-40 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	200 VDC	20 %	33 ÁF	3000 Hrs	0.394 in	10 mm	AEC-Q200	Surface Mount	General Purpose	70 mA	112 mA	Polar	Radial Can - SMD			0.571 "	14.5 mm
