JR16WRA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Shell Finish | Mounting Feature | Contact Material | Color | Applications | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Shielding | Material Flammability Rating | Shell Size - Insert | Ingress Protection | Current Rating (Amps) | Voltage Rating | Primary Material | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Mounting Type | Shell Material | Insert Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | Black Chromium | Bulkhead - Front Side Nut | Copper Alloy | Black | Automotive Industrial Telecommunications | Receptacle Female Sockets | 85 °C | -25 °C | 10 | Unshielded | UL94 V-0 | 16 | IP67/IP68 | 5 A | 100 VAC 140 VDC | Metal | Threaded | 78.7 µin | 2 µm | Keyed | Panel Mount | Aluminum Alloy | Phenol Formaldehyde (PF) | Silver |

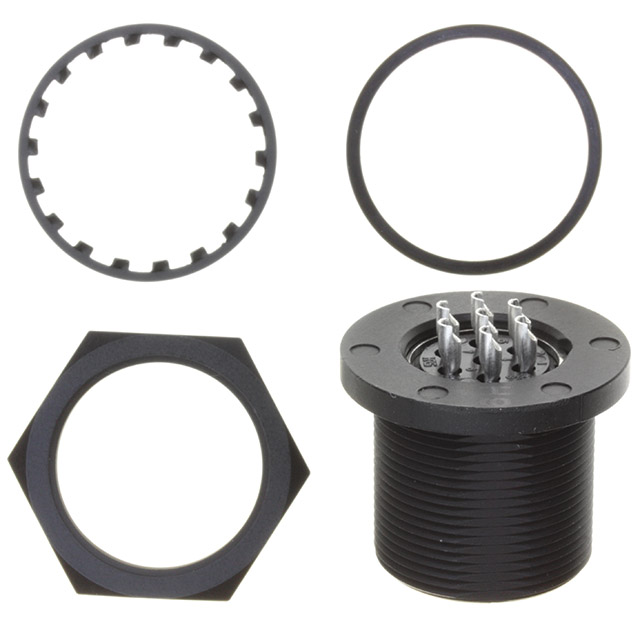

 Hirose Electric Co Ltd | Black Chromium | Bulkhead - Front Side Nut | Copper Alloy | Black | Automotive Industrial Telecommunications | Receptacle Male Pins | 85 °C | -25 °C | 7 | UL94 V-0 | 16 | IP67/IP68 | 10 A | 100 VAC 140 VDC | Metal | Threaded | 78.7 µin | 2 µm | Keyed | Panel Mount | Aluminum Alloy | Phenol Formaldehyde (PF) | Silver |
