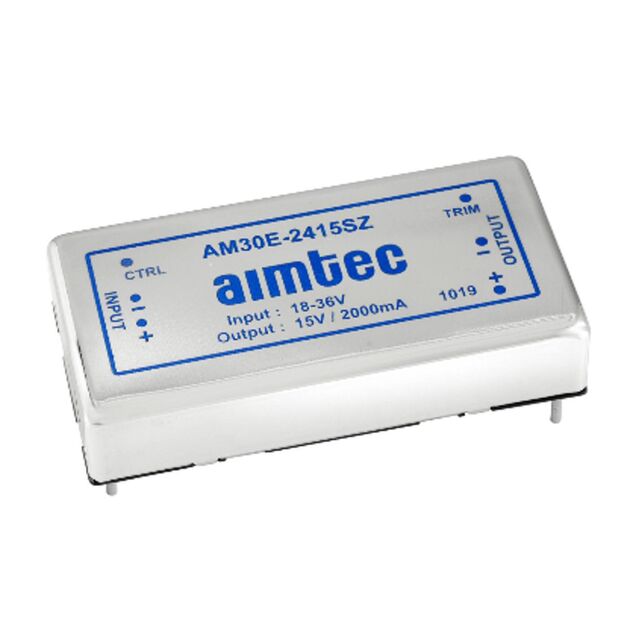

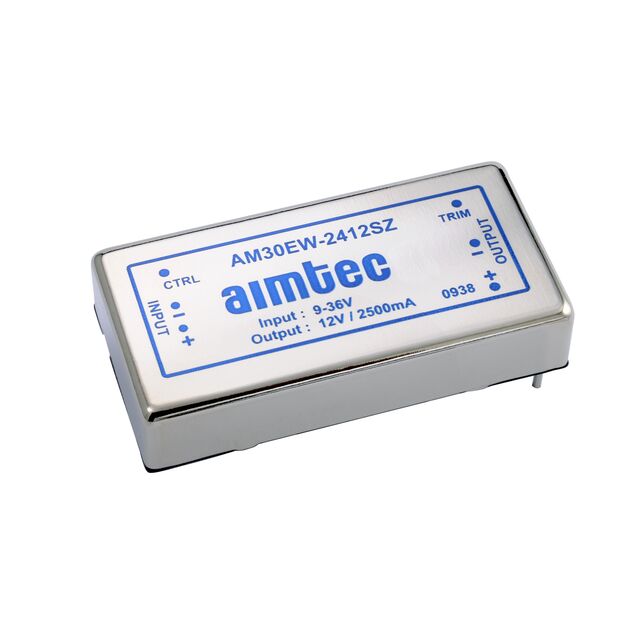

AM30E Series
Manufacturer: aimtec
Beta
⌘K
DC/DC CONVERTER 12V 30W
| Part | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Isolation | Approval Agency | Standard Number | Voltage - Input (Max) [Max] | Voltage - Output 1 | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Mounting Type | Applications | Efficiency | Features | Voltage - Output 2 | Size / Dimension | Current - Output (Max) | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 3 | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | Enclosed | 31.5 mm | 75.9 mm | 1 in | 25.4 mm | 1.24 in | 2.99 in | 1 | 2.5 A | 1.5 kV | CE cURus | 60950-1 | 36 V | 12 V | 30 Watts | 80 ¯C | -40 °C | 9 V | Chassis Mount | ITE (Commercial) | 90 % | ||||||||||||||
 aimtec | Isolated Module | 2 | 1.6 kV | CE | 36 V | 30 Watts | 75 ░C | -40 C | 18 V | Through Hole | ITE (Commercial) | 91 % | Adjustable Output Remote On/Off | -12 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1.25 A | -12 V | 12 V | |||||||||||||||||
aimtec | Isolated Module | 50.8 mm | 0.64 in | 1 " | 2 in | 1 | 1.25 A | 1.5 kV | CE cULus cURus | 75 V | 24 V | 30 Watts | 80 °C | -40 C | 18 V | Through Hole | ITE (Commercial) | 89 % | Remote On/Off | 25.4 mm | 16.3 mm | ||||||||||||||
aimtec | Isolated Module | 50.8 mm | 0.46 in | 1 " | 2 in | 2 | 1.5 kV | CE cURus | 36 V | 30 Watts | 80 °C | -40 C | 9 V | Through Hole | ITE (Commercial) | 89 % | Remote On/Off | -12 V | 1.25 A | -12 V | 12 V | 25.4 mm | 11.8 mm | ||||||||||||
aimtec | Isolated Module | 50.8 mm | 0.47 " | 1 " | 2 in | 2 | 1.5 kV | CE cURus | 75 V | 30 Watts | 80 °C | -40 C | 18 V | Through Hole | ITE (Commercial) | 88 % | Remote On/Off | -15 V | 1 A | 25.4 mm | 11.8 mm | 15 V | -15 V | ||||||||||||
aimtec | Isolated Module | 50.8 mm | 0.47 " | 1 " | 2 in | 2 | 1.5 kV | CE cURus | 36 V | 30 Watts | 80 °C | -40 C | 9 V | Through Hole | ITE (Commercial) | 86 % | Remote On/Off | -5 V | 3 A | -5 V | 5 V | 25.4 mm | 11.8 mm | ||||||||||||
 aimtec | Isolated Module | 3 | 1.6 kV | CE | 36 V | 30 Watts | 75 ░C | -40 C | 9 V | Through Hole | ITE (Commercial) | 90 % | Remote On/Off | 15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 4 A | 15 V | -15 V | 330 mA | 330 mA | -15 V | ||||||||||||||
aimtec | Enclosed | 75.9 mm | 0.84 in | 1.24 in | 2.99 in | 1 | 1.25 A | 1.5 kV | CE cURus | 60950-1 | 36 V | 24 V | 30 Watts | 80 ¯C | -40 °C | 9 V | Chassis Mount | ITE (Commercial) | 90 % | 31.5 mm | 21.3 mm | ||||||||||||||
aimtec | Isolated Module | 1 | 6 A | 1.6 kV | CE | 36 V | 5 V | 30 Watts | 75 °C | -40 °C | 9 V | Through Hole | ITE (Commercial) | 88 % | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 6-DIP Module | |||||||||||||||||||
aimtec | Isolated Module | 2 | 1.6 kV | CE | 36 V | 30 Watts | 75 ░C | -40 C | 18 V | Through Hole | ITE (Commercial) | 91 % | Adjustable Output Remote On/Off | -15 V | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 1 A | 15 V | -15 V |
