ZMC/D/M/Y Series

Catalog

ZENER DIODES ZENER, SOD-80, 3.9V, 0.5W, 5%

Part	Power - Max [Max]	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Impedance (Max) (Zzt) [Max]	Voltage - Zener (Nom) (Vz)	Tolerance	Impedance (Max) (Zzt)

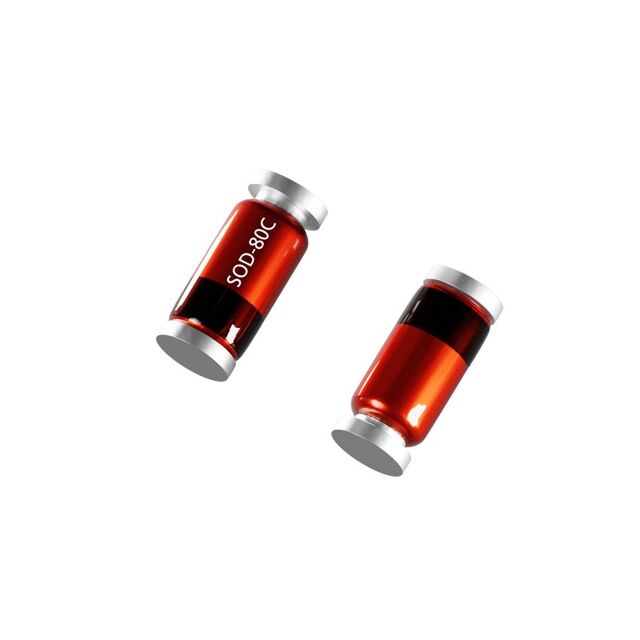

Diotec Semiconductor ZMM3.9	500 mW	2 µA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80	85 Ohms	3.9 V	5 %

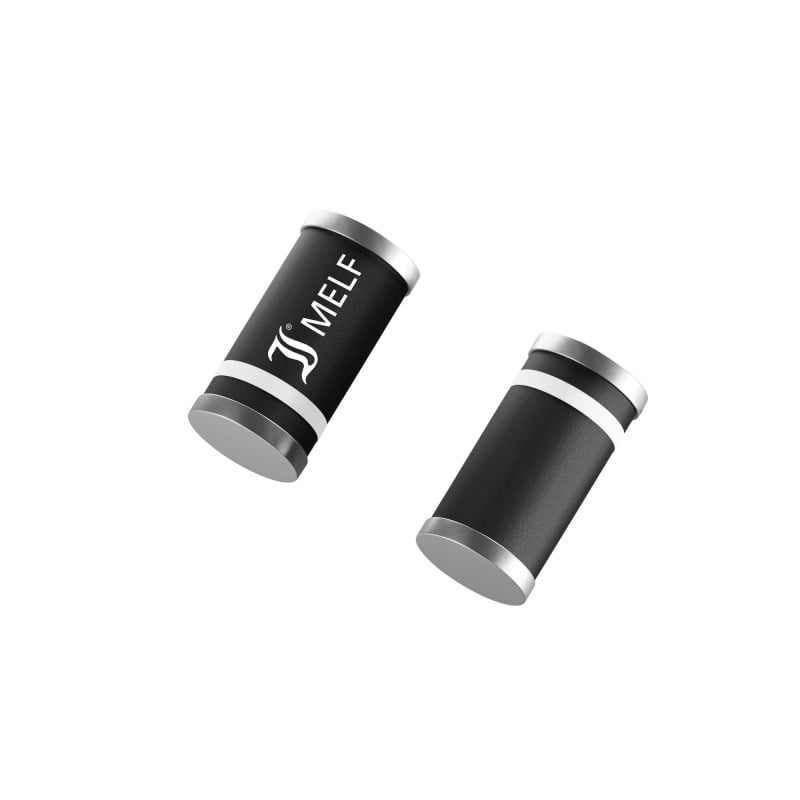

Diotec Semiconductor ZMY24	1.3 W	1 µA	Surface Mount	DO-213AB (MELF)	-50 °C	150 °C	DO-213AB MELF	7 Ohms	24 V	5 %
Diotec Semiconductor ZMM20B	500 mW	100 nA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80	55 Ohms	20 V	2 %
Diotec Semiconductor ZMY43B	1.3 W	1 µA	Surface Mount	DO-213AB (MELF)	-50 °C	150 °C	DO-213AB MELF	24 Ohms	43 V	2 %
Diotec Semiconductor ZMM47	500 mW	100 nA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80	110 Ohms	47 V	5 %
Diotec Semiconductor ZMY68B	1.3 W	1 µA	Surface Mount	DO-213AB (MELF)	-50 °C	150 °C	DO-213AB MELF	25 Ohms	68 V	2 %
Diotec Semiconductor ZMM10B	500 mW	100 nA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80		10 V	2 %	15 Ohms
Diotec Semiconductor ZMM3.3	500 mW	2 µA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80	85 Ohms	3.3 V	5 %
Diotec Semiconductor ZMM68B	500 mW	100 nA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80	8 Ohms	68 V	2 %
Diotec Semiconductor ZMC39	500 mW	100 nA	Surface Mount	SOD-80C	-50 °C	175 ░C	DO-213AC MINI-MELF SOD-80	90 Ohms	39 V	5 %
