C5804 Series
Manufacturer: Prysmian Group
Beta
⌘K

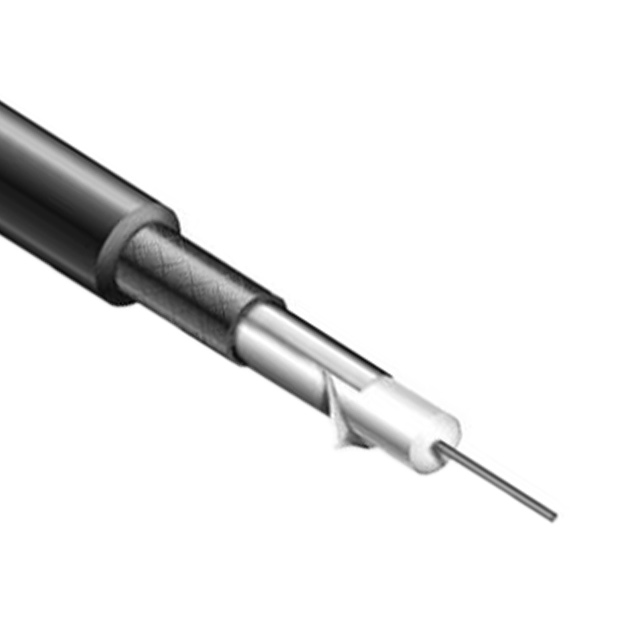

CABLE COAXIAL RG-6 18AWG 1000'
| Part | Jacket (Insulation) Material | Conductor Strand | Cable Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Shield Type | Cable Group | Shield Coverage [custom] | Features | Impedance | Length | Length | Conductor Material | Wire Gauge | VoP, Velocity of Propagation | Jacket Color | Wire Gauge | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Polyethylene (PE) | Solid | Coaxial | Direct Burial Flooded | 0.27 " | 6.86 mm | 15.24 m 304.8 m | 50 ft 1000 ft | Braid Foil | RG-6 | 60 % 100 % | MoistureGuard™ | 75 Ohms | 100 ' | 30.48 m | Copper Coated Steel | 0.82 mm² 18 AWG | 85 | Black | 18 AWG | 0.177 in | 4.5 mm | Solid Polyethylene (PE) | Aluminum Flexfoil® |
Prysmian Group | Polyethylene (PE) | Solid | Coaxial | Direct Burial Flooded | 0.27 " | 6.86 mm | 15.24 m 304.8 m | 50 ft 1000 ft | Braid Foil | RG-6 | MoistureGuard™ | 75 Ohms | 100 ' | 30.48 m | 18 AWG | Black |
