HIF3HB Series

Catalog

CONN RCPT 64POS 0.1 GOLD PCB

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Applications	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Voltage Rating	Features	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Connector Type	Number of Rows [custom]	Contact Type	Fastening Type	Style
Hirose Electric Co Ltd HIF3HB-64DA-2.54DSA(71)	Polybutylene Terephthalate (PBT)	Phosphor Bronze	39.4 çin	1 çm	Square	General Purpose	3 A	8 µin	0.203 µm	Through Hole	Tin	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	All	-55 C	85 °C	Gold	0.118 in	3 mm	300 VAC	Polarizing Key	UL94 V-0	9.5 mm	0.374 in	64	Receptacle	2	Female Socket
Hirose Electric Co Ltd HIF3HB-60DA-2.54DSA(71)	Polybutylene Terephthalate (PBT)	Phosphor Bronze	39.4 çin	1 çm	Square	General Purpose	3 A	8 µin	0.203 µm	Through Hole	Tin	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	All	-55 C	85 °C	Gold	0.118 in	3 mm	300 VAC	Polarizing Key	UL94 V-0	9.5 mm	0.374 in	60	Receptacle	2	Female Socket
Hirose Electric Co Ltd HIF3HB-64DA-2.54DSA(61)	Polybutylene Terephthalate (PBT)	Phosphor Bronze	39.4 çin	1 çm	Square		3 A	8 µin	0.203 µm	Through Hole	Tin	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	All	-55 C	85 °C	Gold	0.118 in	3 mm	300 VAC		UL94 V-0	9.5 mm	0.374 in	64	Receptacle	2	Female Socket	Push-Pull	Board to Cable/Wire
Hirose Electric Co Ltd HIF3HB-50DA-2.54DSA(61)	Polybutylene Terephthalate (PBT)	Phosphor Bronze	39.4 çin	1 çm	Square		3 A	8 µin	0.203 µm	Through Hole	Tin	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	All	-55 C	85 °C	Gold	0.118 in	3 mm	300 VAC		UL94 V-0	9.5 mm	0.374 in	50	Receptacle	2	Female Socket	Push-Pull	Board to Cable/Wire

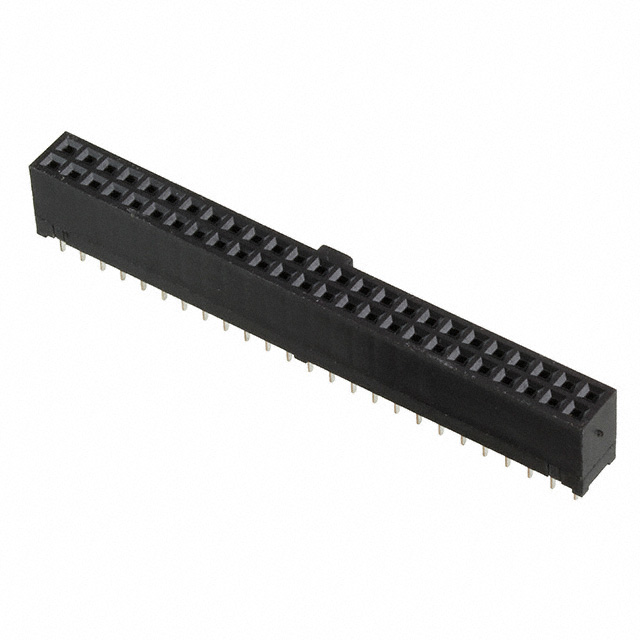

Hirose Electric Co Ltd HIF3HB-50DA-2.54DSA(71)	Polybutylene Terephthalate (PBT)	Phosphor Bronze	39.4 çin	1 çm	Square	General Purpose	3 A	8 µin	0.203 µm	Through Hole	Tin	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	All	-55 C	85 °C	Gold	0.118 in	3 mm	300 VAC	Polarizing Key	UL94 V-0	9.5 mm	0.374 in	50	Receptacle	2	Female Socket
Hirose Electric Co Ltd HIF3HB-60DA-2.54DSA(61)	Polybutylene Terephthalate (PBT)	Phosphor Bronze	39.4 çin	1 çm	Square		3 A	8 µin	0.203 µm	Through Hole	Tin	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	All	-55 C	85 °C	Gold	0.118 in	3 mm	300 VAC		UL94 V-0	9.5 mm	0.374 in	60	Receptacle	2	Female Socket	Push-Pull	Board to Cable/Wire
