FH41 Series

Catalog

FFC & FPC CONNECTORS CONN FFC 50POS .5MM

Part	Number of Positions	Cable End Type	Termination	Mounting Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Features	Connector/Contact Type	FFC, FCB Thickness	Material Flammability Rating	Flat Flex Type	Locking Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Mating Cycles	Actuator Color	Current Rating (Amps)	Actuator Material	Contact Finish	Housing Material	Contact Material	Number of Positions [custom]
Hirose Electric Co Ltd FH41-50S-0.5SH(28)	50	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C
Hirose Electric Co Ltd FH41-40S-0.5SH(05)	40	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C	1.25 Áin	0.03 Ám	Gray	20	Black	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze
Hirose Electric Co Ltd FH41-68S-0.5SH(98)	68 positions	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C							Liquid Crystal Polymer (LCP) Halogen Free	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze
Hirose Electric Co Ltd FH41-20S-0.5SH(99)	20	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C			Gray	20	Black	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze

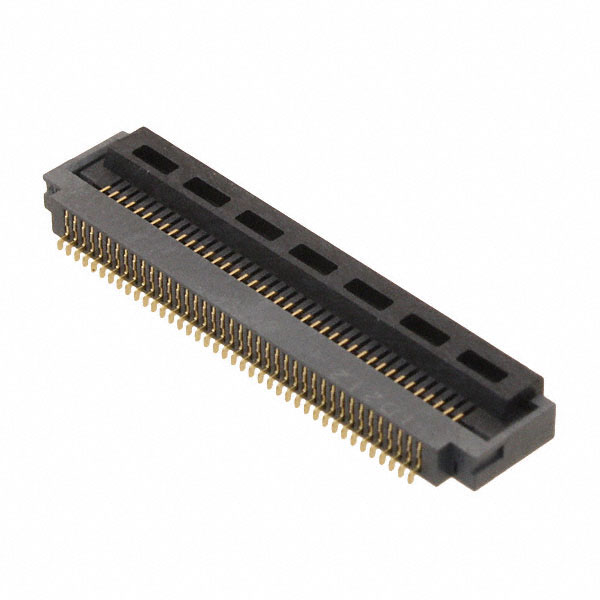

Hirose Electric Co Ltd FH41-40S-0.5SH	40	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C			Gray	20	Black	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free		Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze
Hirose Electric Co Ltd FH41-15S-0.5SH(99)	15	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C							Liquid Crystal Polymer (LCP) Halogen Free	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze
Hirose Electric Co Ltd FH41-40S-0.5SH(99)	40	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C			Gray	20	Black	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze
Hirose Electric Co Ltd FH41-60S-0.5SH(05)	60	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm		Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C	1.25 Áin	0.03 Ám	Gray	20	Black	0.5 A	Liquid Crystal Polymer (LCP)	Gold	Liquid Crystal Polymer (LCP)	Phosphor Bronze

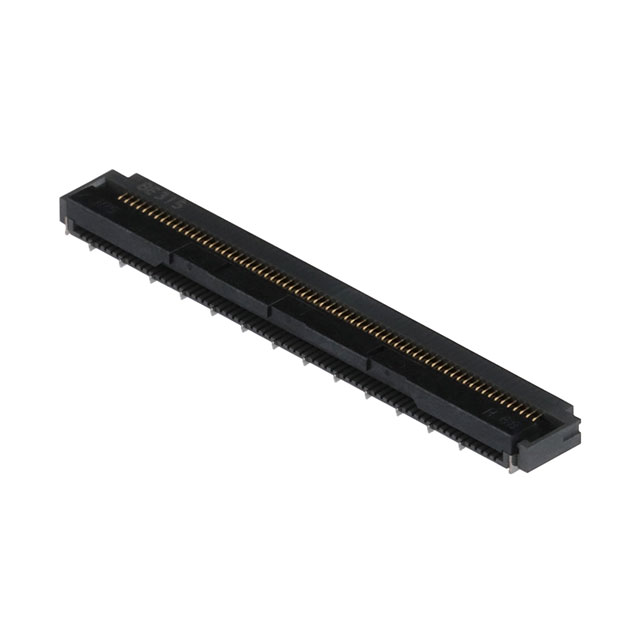

Hirose Electric Co Ltd FH41-68S-0.5SH(28)	68 positions	Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C	1.25 Áin	0.03 Ám	Gray	20	Black	0.5 A

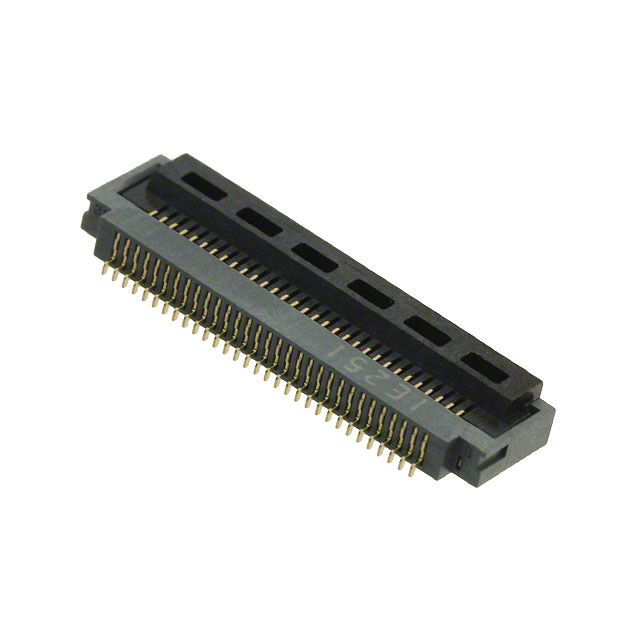

Hirose Electric Co Ltd FH41-31S-0.5SH(99)		Tabbed	Solder	Right Angle Surface Mount	0.02 "	0.5 mm	0.098 in	2.5 mm	Solder Retention	Contacts Bottom	0.3 mm	UL94 V-0	FFC	Backlock Flip Lock	50 V	-40 C	105 ░C			Gray	20	Black	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	31
