LKS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 35VOLTS 4700UF 20%

Part	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Capacitance	Lifetime @ Temp.	Polarization	Size / Dimension	Size / Dimension [diameter]	Mounting Type	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

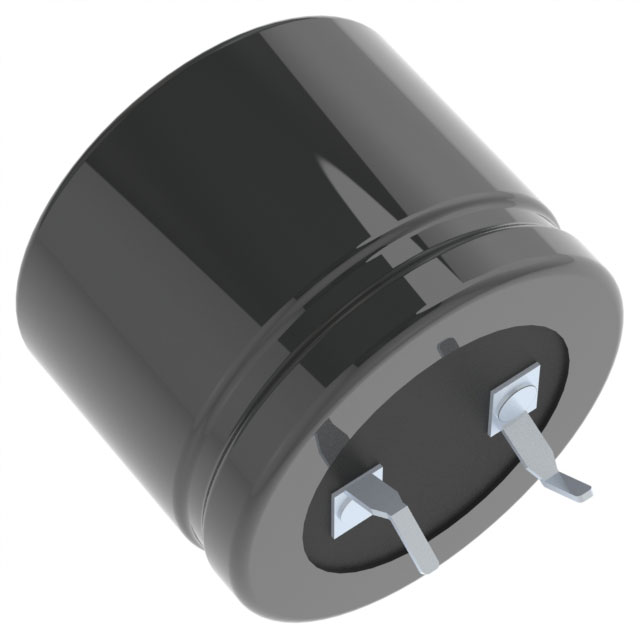

Nichicon LKS1V472MESB	35 V	20 %	0.394 in	10 mm	4700 µF	1000 Hrs	Polar	30 mm	1.181 "	Through Hole	Radial Can - Snap-In	2.1 A	85 °C	-40 C	0.787 in	20 mm	Audio

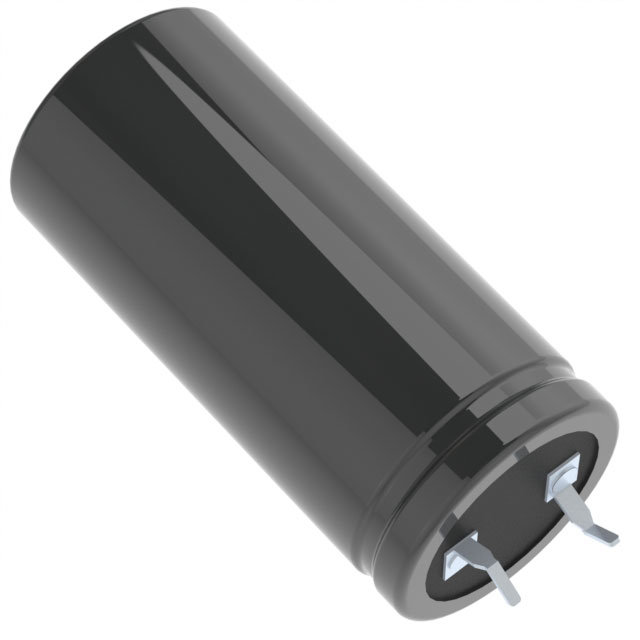

Nichicon LKSA2682MESZ	42 VDC	20 %	0.394 in	10 mm	6800 µF	1000 Hrs	Polar		0.866 "	Through Hole	Radial Can - Snap-In	2.9 A	85 °C	-40 C	47 mm		Audio	22 mm	1.85 in

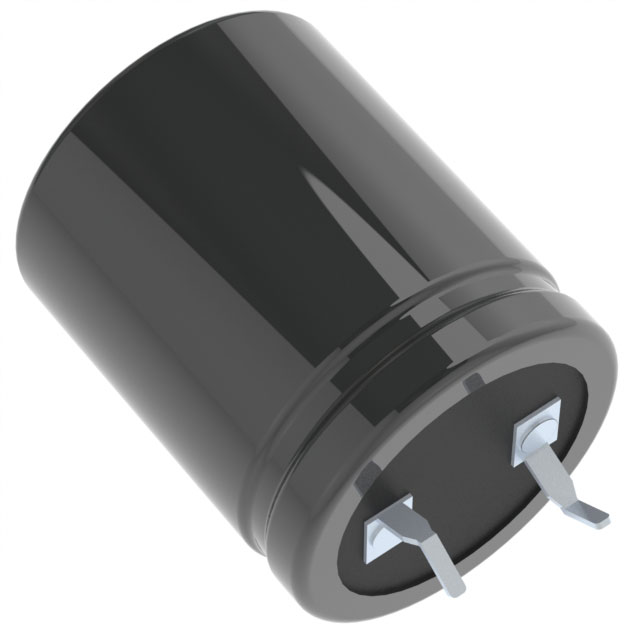

Nichicon LKSA2272MESZ	42 VDC	20 %	0.394 in	10 mm	2700 µF	1000 Hrs	Polar		0.866 "	Through Hole	Radial Can - Snap-In	1.7 A	85 °C	-40 C	27 mm		Audio	22 mm	1.063 in
Nichicon LKS1H222MESA	50 VDC	20 %	0.394 in	10 mm	2200 µF	1000 Hrs	Polar		0.984 "	Through Hole	Radial Can - Snap-In	1.75 A	85 °C	-40 C	0.787 in	20 mm	Audio	25 mm

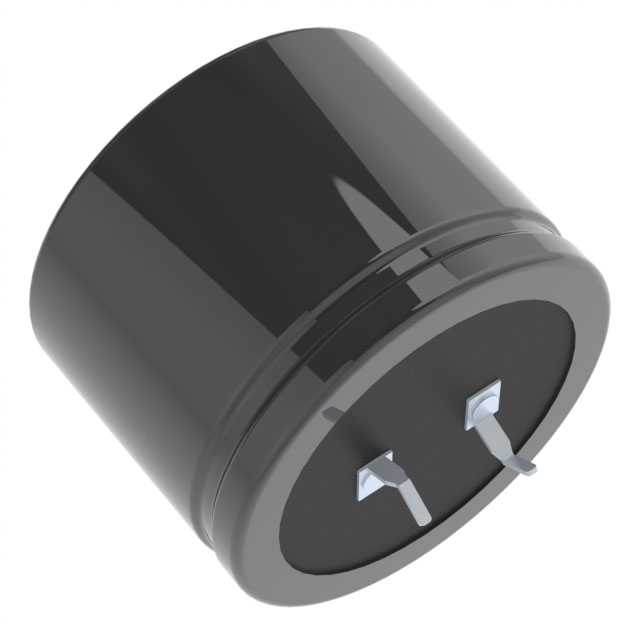

Nichicon LKS1E123MESC	25 VDC	20 %	0.394 in	10 mm	12000 µF	1000 Hrs	Polar		1.378 "	Through Hole	Radial Can - Snap-In	2.65 A	85 °C	-40 C	27 mm		Audio	35 mm	1.063 in
Nichicon LKS1H472MESY	50 VDC	20 %	0.394 in	10 mm	4700 µF	1000 Hrs	Polar		0.787 "	Through Hole	Radial Can - Snap-In	2.55 A	85 °C	-40 C	50 mm		Audio	20 mm	1.969 in
Nichicon LKSA2103MESC	42 VDC	20 %	0.394 in	10 mm	10000 µF	1000 Hrs	Polar		1.378 "	Through Hole	Radial Can - Snap-In	3.5 A	85 °C	-40 C			Audio	35 mm		1.26 in	32 mm
