MP33 Series

Catalog

MIC MEMS ANALOG OMNI -38DB

Part	Voltage Range [Min]	Voltage Range [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Frequency Range [Min]	Frequency Range [Max]	Port Location	Output Type	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	S/N Ratio	Termination	Direction	Shape	Type

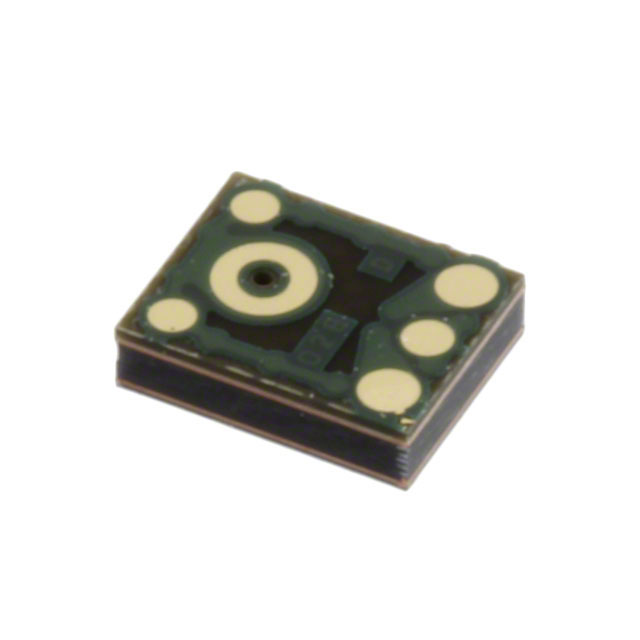

STMicroelectronics MP33AB01TR	1.5 V	3.6 V	0.043 in	1.1 mm	100 Hz	10 kHz	Bottom	Analog	2.2 V	0.116 in	2.95 mm	3.76 mm	0.148 in	63 dB	Solder Pads	Omnidirectional	Rectangular	MEMS (Silicon)

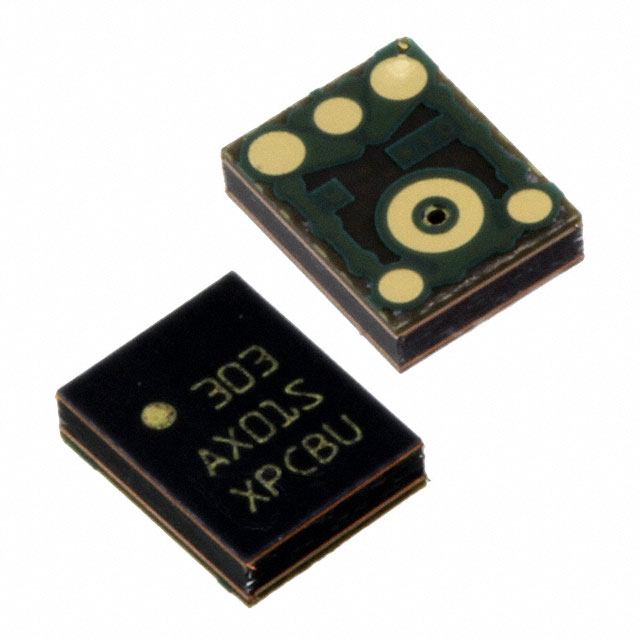

STMicroelectronics MP33AB01HTR	1.5 V	3.6 V	0.043 in	1.1 mm	100 Hz	10 kHz	Bottom	Analog	2.2 V	0.116 in	2.95 mm	3.76 mm	0.148 in	66 dB	Solder Pads	Omnidirectional	Rectangular	MEMS (Silicon)
