528-45 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

HEATSINK DC/DC HALF BRICK VERT

Part	Package Cooled	Width [x]	Width [x]	Shape [custom]	Shape [custom]	Thermal Resistance @ Forced Air Flow	Material Finish	Material	Power Dissipation @ Temperature Rise	Type	Attachment Method	Length	Length	Fin Height [z]	Fin Height [z]	Length [x]	Length [x]
Wakefield Thermal Solutions 528-45AB-MET725	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	2.1 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level Vertical	Bolt On Thermal Material	60.96 mm	2.4 in	11.43 mm	0.45 "
Wakefield Thermal Solutions 528-45AB-T725	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	2.1 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level Vertical	Bolt On Thermal Material	60.96 mm	2.4 in	11.43 mm	0.45 "
Wakefield Thermal Solutions 528-45AB-T725	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	2.1 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level Vertical	Bolt On Thermal Material	60.96 mm	2.4 in	11.43 mm	0.45 "
Wakefield Thermal Solutions 528-45AB-ME	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	2.1 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level Vertical	Bolt On Thermal Material	60.96 mm	2.4 in	11.43 mm	0.45 "
Wakefield Thermal Solutions 528-45AB-ME	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	2.1 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level Vertical	Bolt On Thermal Material	60.96 mm	2.4 in	11.43 mm	0.45 "
Wakefield Thermal Solutions 528-45AB-MET725	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	2.1 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level Vertical	Bolt On Thermal Material	60.96 mm	2.4 in	11.43 mm	0.45 "

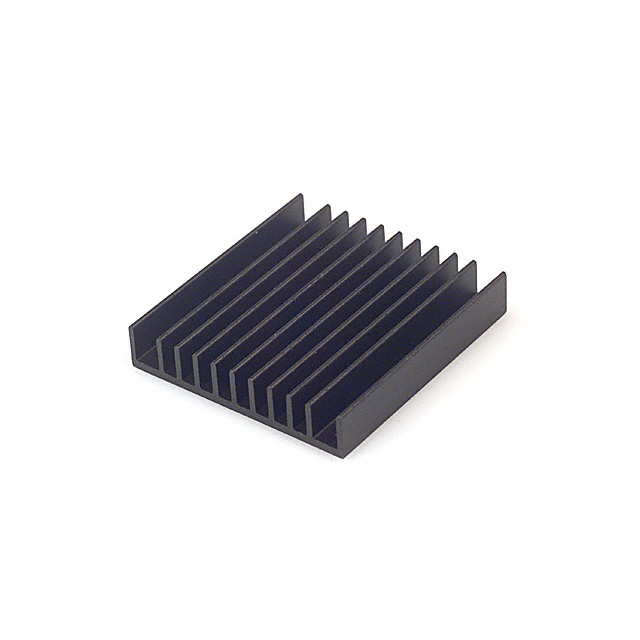

Wakefield Thermal Solutions 528-45AB	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	3.2 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level	Bolt On			11.43 mm	0.45 "	2.402 in	61 mm
Wakefield Thermal Solutions 528-45AB	Half Brick DC/DC Converter	2.28 in	57.91 mm	Rectangular	Fins	3.2 °C/W	Black Anodized	Aluminum	7 W 60 °C	Board Level	Bolt On			11.43 mm	0.45 "	2.402 in	61 mm
