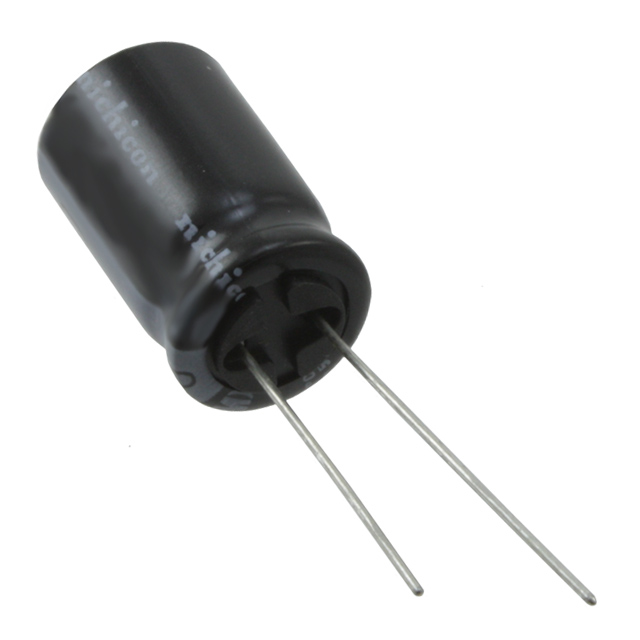

UVZ Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, 100 ΜF, 160 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Part	Mounting Type	Lead Spacing	Lead Spacing	Polarization	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lifetime @ Temp.	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ripple Current @ Low Frequency	Voltage - Rated	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UVZ2C101MHD1TO	Through Hole	0.197 "	5 mm	Polar	100 µF	1.063 in	27 mm	Can Radial	2000 Hrs	20 %	-40 C	105 ░C	0.492 in	12.5 mm	General Purpose	215 mA	160 V	344 mA
Nichicon UVZ1V221MPD1AA	Through Hole	0.197 "	5 mm	Polar	220 µF	0.551 in	14 mm	Can Radial	2000 Hrs	20 %	-55 C	105 ░C	0.394 in	10 mm	General Purpose	275 mA	35 V	412.5 mA
Nichicon UVZ2D471MRD	Through Hole	0.394 in	10 mm	Polar	470 µF	2.047 in	52 mm	Can Radial	2000 Hrs	20 %	-40 C	105 ░C	0.866 "	22 mm	General Purpose	840 mA	200 VDC
Nichicon UVZ2A470MPD1TD	Through Hole	0.197 "	5 mm	Polar	47 µF	0.551 in	14 mm	Can Radial	2000 Hrs	20 %	-55 C	105 ░C	0.394 in	10 mm	General Purpose	165 mA	100 V	330 mA
Nichicon UVZ1H471MHD1AA	Through Hole	0.197 "	5 mm	Polar	470 µF			Can Radial	2000 Hrs	20 %	-55 C	105 ░C	0.492 in	12.5 mm	General Purpose	530 mA	50 VDC	795 mA	0.866 in	22 mm
Nichicon UVZ1H330MDD1TA	Through Hole	0.197 "	5 mm	Polar	33 ÁF		0.492 in	Can Radial	1000 Hrs	20 %	-55 C	105 ░C	0.197 in	5 mm	General Purpose	90 mA	50 VDC	180 mA			12.5 mm
Nichicon UVZ0J470MDD	Through Hole	0.079 in	2 mm	Polar	47 µF		0.492 in	Can Radial	1000 Hrs	20 %	-55 C	105 ░C	0.197 in	5 mm	General Purpose	65 mA	6.3 VDC	130 mA			12.5 mm
Nichicon UVZ1H331MPD1CC	Through Hole	0.197 "	5 mm	Polar	330 µF			Can Radial	2000 Hrs	20 %	-55 C	105 ░C	0.394 in	10 mm	General Purpose	410 mA	50 VDC	615 mA				17.5 mm	0.689 in
Nichicon UVZ2W101MRD	Through Hole	0.394 in	10 mm	Polar	100 µF			Can Radial	2000 Hrs	20 %	-25 °C	105 ░C	0.866 "	22 mm	General Purpose	270 mA	450 V	432 mA					42 mm	1.654 in
Nichicon UVZ2A471MHD1YQ
