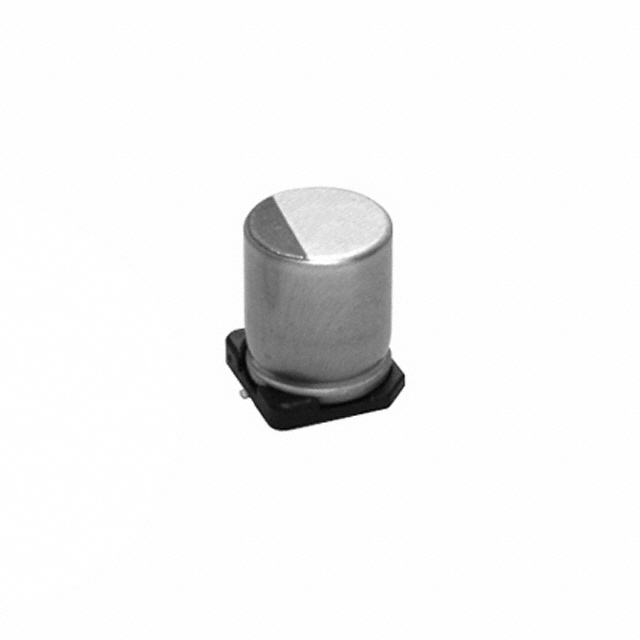

PCG Series

Manufacturer: Nichicon

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 1500 ΜF, 2.5 V, RADIAL CAN - SMD, 0.017 OHM

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Type	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	ESR (Equivalent Series Resistance)	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	Ratings	Lifetime @ Temp.	Ripple Current @ High Frequency	Height - Seated (Max)
Nichicon PCG0E152MCL1GS	8 mm	0.315 in	General Purpose	Polymer	Surface Mount	0.394 in	10 mm	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	17 mOhm	2.5 V	-55 C	105 ░C	1.5 mF	Radial Can - SMD	AEC-Q200	2000 Hrs	4.1 A
Nichicon PCG0J331MCL1GS		0.236 "	General Purpose	Polymer	Surface Mount	0.248 "	6.3 mm	0.26 in	0.26 in	6.6 mm	6.6 mm	20 %	23 mOhm	6.3 VDC	-55 C	105 ░C	330 µF	Radial Can - SMD	AEC-Q200	2000 Hrs	2.7 A	6 mm
Nichicon PCG0J182MCL1GS	10 mm	0.394 in	General Purpose	Polymer	Surface Mount	0.394 in	10 mm	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	14 mOhms	6.3 VDC	-55 C	105 ░C	1800 µF	Radial Can - SMD	AEC-Q200	2000 Hrs	4.4 A
Nichicon PCG1C271MCL1GS	8 mm	0.315 in	General Purpose	Polymer	Surface Mount	0.394 in	10 mm	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	25 mOhm	16 V	-55 C	105 ░C	270 µF	Radial Can - SMD	AEC-Q200	2000 Hrs	3.3 A
Nichicon PCG0J471MCL1GS	7 mm	0.276 in	General Purpose	Polymer	Surface Mount	0.315 in	8 mm	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	22 mOhms	6.3 VDC	-55 C	105 ░C	470 µF	Radial Can - SMD	AEC-Q200	2000 Hrs	3.1 A
Nichicon PCG0E331MCO1GS		0.236 "	General Purpose	Polymer	Surface Mount	0.197 in	5 mm			0.209 in 5.3 mm	0.209 in 5.3 mm	20 %	10 mOhm	2.5 V	-55 C	105 ░C	330 µF	Radial Can - SMD	AEC-Q200	2000 Hrs	3.3 A	6 mm
