AM10W Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 5V 10W
| Part | Voltage - Isolation | Efficiency | Number of Outputs | Package / Case | Power (Watts) | Applications | Current - Output (Max) [Max] | Voltage - Output 1 | Approval Agency | Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

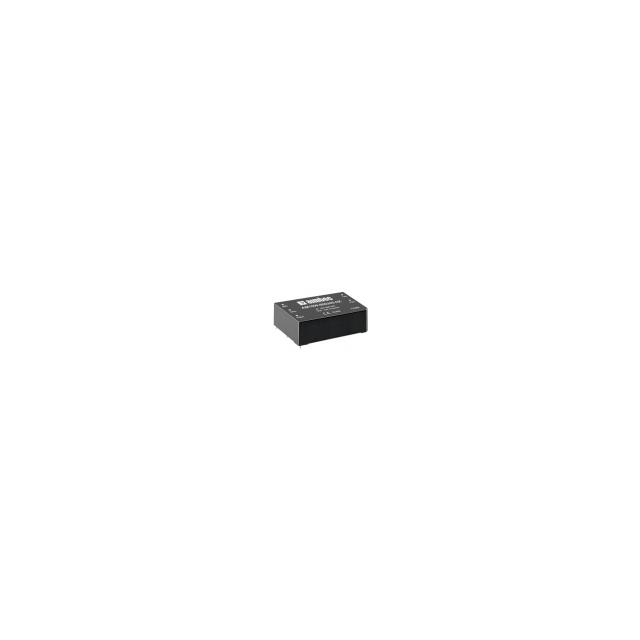

 aimtec | 4000 V | 64 % | 1 | 5-DIP Module | 10 W | ITE (Commercial) | 2 A | 5 V | CE | Isolated Module | 200 V | 1500 V | 23.5 mm | 1.89 in | 0.93 " | 48 mm | 2.76 " | 70 mm | Through Hole | ||

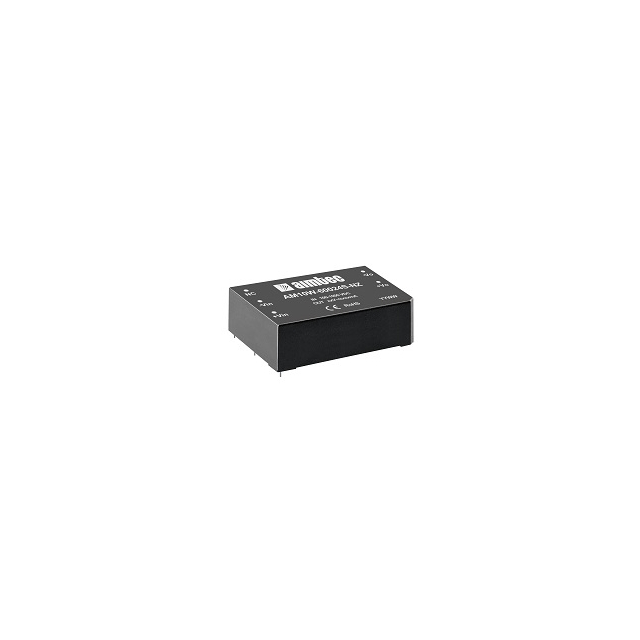

 aimtec | 4000 V | 72 % | 1 | 10 W | ITE (Commercial) | 2 A | 5 V | CE | Isolated Module | 100 VDC | 1000 V | 23.5 mm | 1.89 in | 0.93 " | 48 mm | 2.76 " | 70 mm | Through Hole | 70 °C | -40 C |
