262-75 Series

Catalog

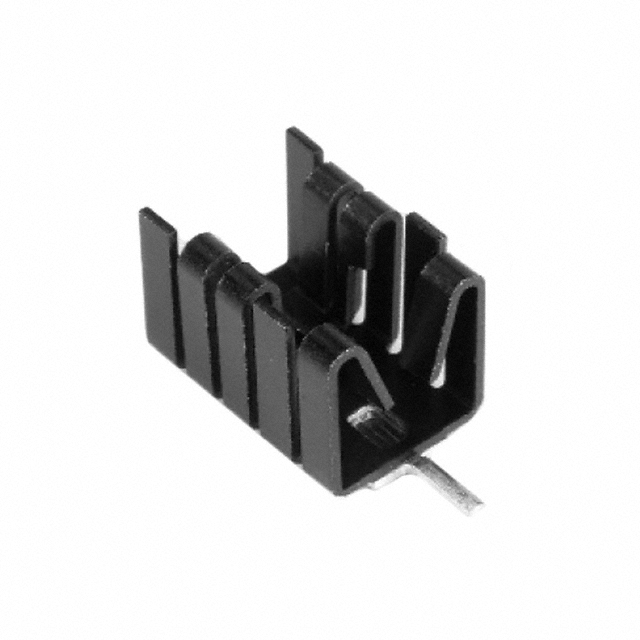

HEAT SINK, SQUARE, PCB, DB EXTRUSIONS, 40 °C/W, TO-220, 14.5 MM, 13.41 MM, 19 MM

Part	Type	Width	Width	Material Finish	Fin Height	Fin Height	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Material	Package Cooled	Power Dissipation @ Temperature Rise	Length	Length	Shape [custom]	Shape [custom]	Attachment Method
Wakefield Thermal Solutions 262-75ABE-05	Board Level	14.47 mm	0.57 in	Black Anodized	0.5 "	12.7 mm	26.7 °C/W	10 °C/W	Aluminum	TO-220	3 W 80 °C	0.75 in	19.05 mm	Rectangular	Fins	Press Fit and PC Pin
Wakefield Thermal Solutions 262-75ABE01	Board Level Vertical	14.47 mm	0.57 in	Black Anodized	0.5 "	12.7 mm	26.7 °C/W	10 °C/W	Aluminum	TO-220	3 W 80 °C	0.75 in	19.05 mm	Rectangular	Fins	Press Fit and PC Pin
Wakefield Thermal Solutions 262-75ABE-05	Board Level	14.47 mm	0.57 in	Black Anodized	0.5 "	12.7 mm	26.7 °C/W	10 °C/W	Aluminum	TO-220	3 W 80 °C	0.75 in	19.05 mm	Rectangular	Fins	Press Fit and PC Pin
Wakefield Thermal Solutions 262-75ABE01	Board Level Vertical	14.47 mm	0.57 in	Black Anodized	0.5 "	12.7 mm	26.7 °C/W	10 °C/W	Aluminum	TO-220	3 W 80 °C	0.75 in	19.05 mm	Rectangular	Fins	Press Fit and PC Pin
