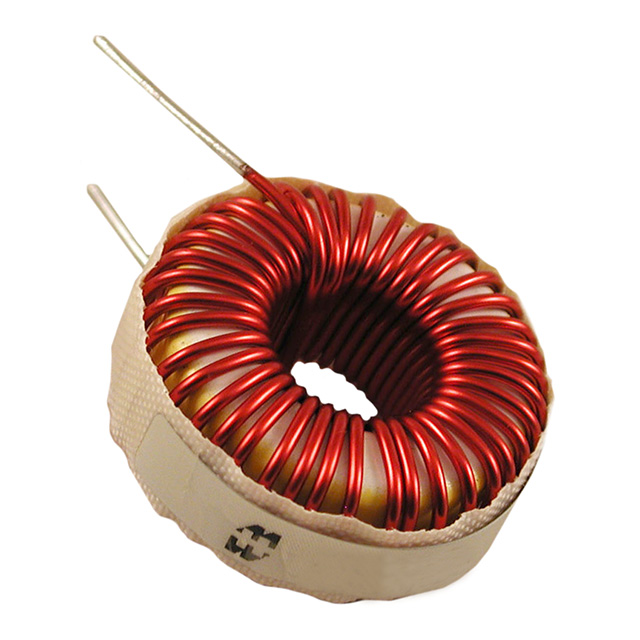

1540 Series

Catalog

FIXED IND 400UH 2.25A 330MOHM TH

Part	DC Resistance (DCR)	Shielding	Current Rating (Amps)	Package / Case	Mounting Type	Tolerance	Type	Size / Dimension [custom]	Size / Dimension [diameter]	Inductance	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Size / Dimension [custom]
Hammond Manufacturing 1540M08	330 mOhm	Unshielded	2.25 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal	0.562 " 14.27 mm	1.125 " 28.58 mm	400 µH
Hammond Manufacturing 1540M20	2.64 Ohm	Unshielded	1.25 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal		46.02 mm	4.5 mH	1.812 in	19.05 mm	0.75 in
Hammond Manufacturing 1540M09		Unshielded	1.75 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal	0.562 " 14.27 mm	1.125 " 28.58 mm	800 µH				640 mOhm
Hammond Manufacturing 1540M22		Unshielded	3.75 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal		53.97 mm	900 µH	2.125 in	23.8 mm	0.937 "	175 mOhm
Hammond Manufacturing 1540M15		Unshielded	1.5 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal	15.88 mm	31.75 mm	1.6 mH	1.25 "			1.27 Ohm	0.625 in
Hammond Manufacturing 1540M12		Unshielded	4.75 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal	15.88 mm	31.75 mm	150 µH	1.25 "			46 mOhm	0.625 in
Hammond Manufacturing 1540M21		Unshielded	8 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal		53.97 mm	250 µH	2.125 in	23.8 mm	0.937 "	41 mOhm
Hammond Manufacturing 1540M01		Unshielded	11 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal		22.22 mm	10 µH	0.875 in	11.1 mm	0.437 in	8 mOhm
Hammond Manufacturing 1540M10		Unshielded	1.5 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal	0.562 " 14.27 mm	1.125 " 28.58 mm	1 mH				980 mOhm
Hammond Manufacturing 1540M25	3.34 Ohm	Unshielded	1 A	Radial Vertical (Open)	Through Hole	15 %	Toroidal		53.97 mm	8 mH	2.125 in	23.8 mm	0.937 "
