FH40 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN FPC VERT 10POS 0.5MM SMD
| Part | Actuator Color | Housing Color | Mating Cycles | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Cable End Type | Height Above Board [z] | Height Above Board [z] | Flat Flex Type | Termination | Locking Feature | FFC, FCB Thickness | Pitch | Pitch | Connector/Contact Type | Actuator Material | Housing Material | Contact Material | Number of Positions | Contact Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 10 | Gold | Surface Mount |

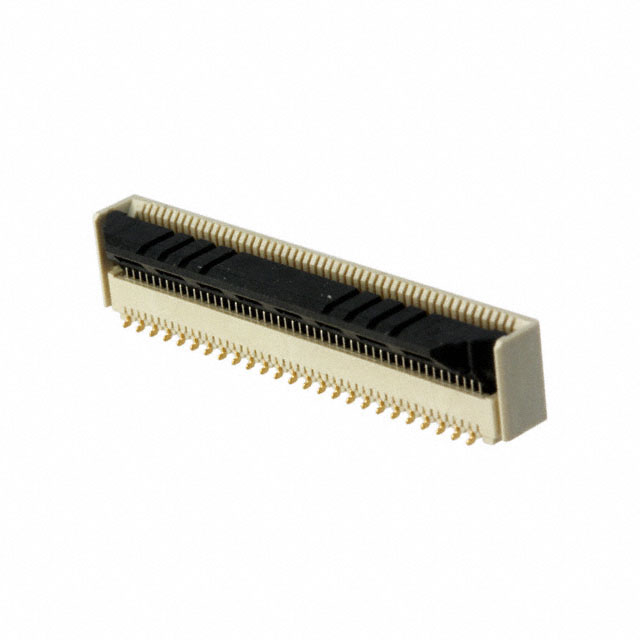

 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 50 | Gold | Surface Mount |

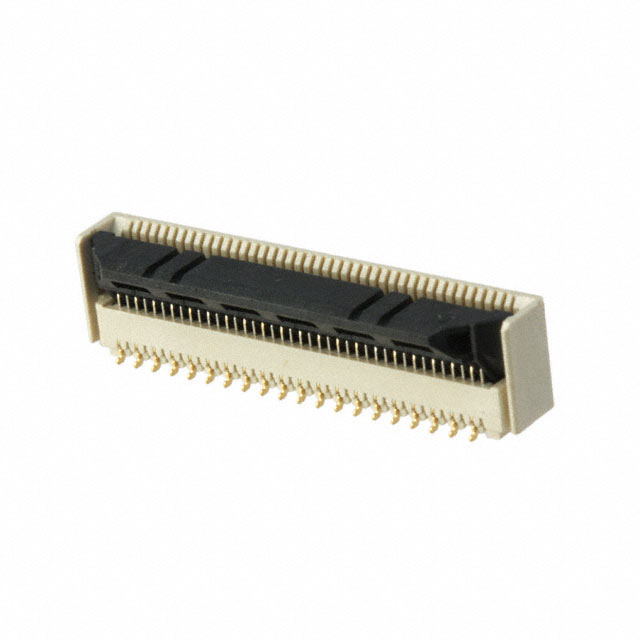

 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 40 | Gold | Surface Mount |
Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 40 | Gold | Surface Mount |
 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 80 | Gold | Surface Mount |

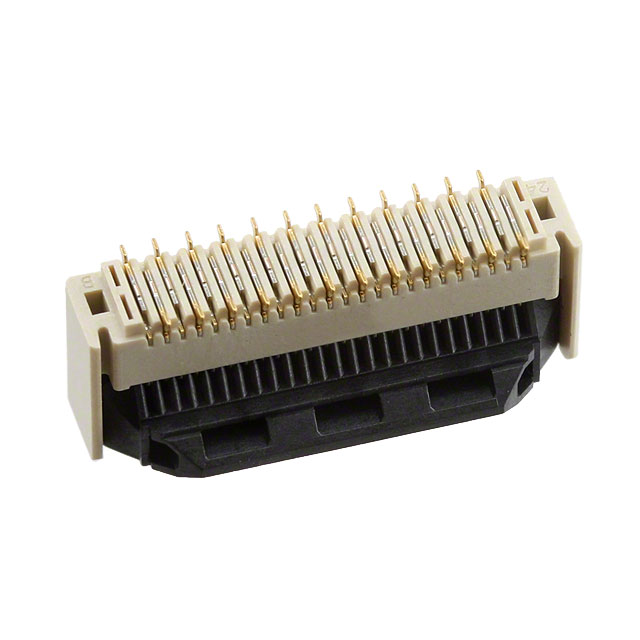

 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 24 | Gold | Surface Mount |

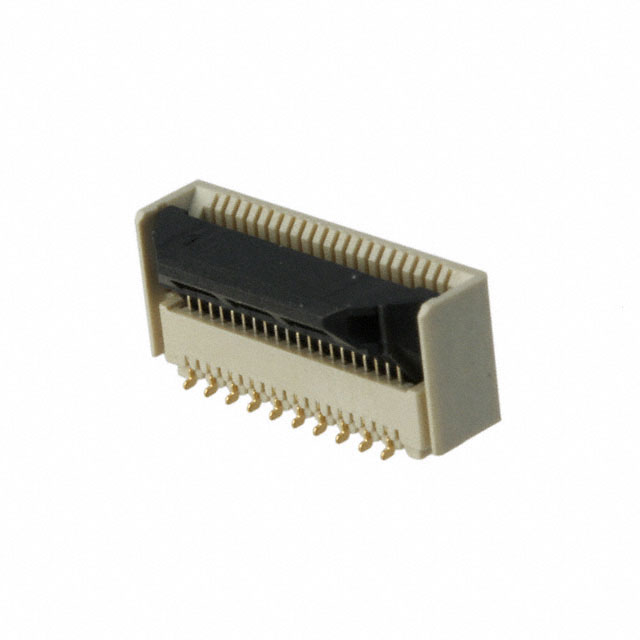

 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 20 | Gold | Surface Mount |
Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 24 | Gold | Surface Mount |
Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 10 | Gold | Surface Mount |
 Hirose Electric Co Ltd | Black | Beige | 20 | 0.5 A | 50 V | UL94 V-0 | -40 C | 105 ░C | Tabbed | 5.8 mm | 0.228 in | FPC | Solder | Flip Lock | 0.3 mm | 0.02 " | 0.5 mm | Contacts Vertical - 1 Sided | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 45 | Gold | Surface Mount |
