SMT Direct I/Q Modulator, 450 - 4000 MHz
Key Features
• Very Low Noise Floor, -165 dBm/Hz
• Excellent Carrier & Sideband Suppression
• Very High Linearity, +22 dBm OIP3
• High Output Power, +9 dBm Output P1dB
• High Modulation Accuracy
• 24 Lead 4x4 mm QFN Package: 16 mm²

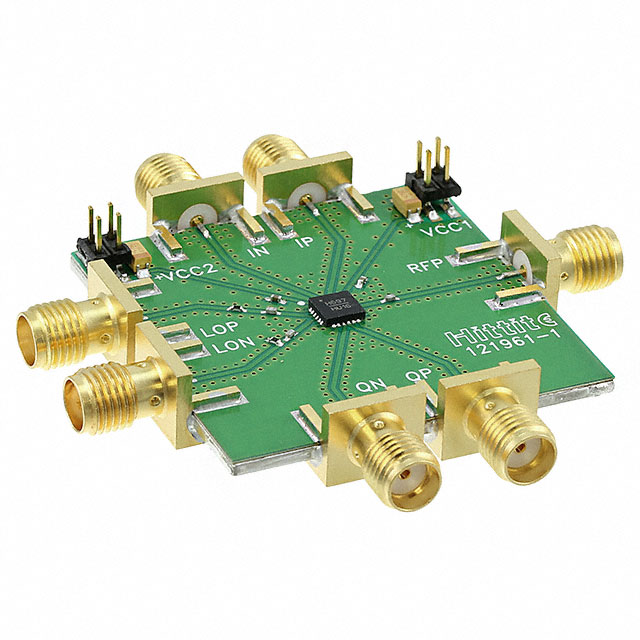

Description
AI
The HMC697LP4(E) is a low noise, high linearity Direct Quadrature Modulator RFIC which is ideal for digital modulation applications from 0.2 to 4.0 GHz including; Cellular/3G, WiMAX/4G, Broadband Wireless Access & ISM circuits. Housed in a compact 4x4 mm (LP4) SMT QFN package, the RFIC requires minimal external components & provides a low cost alternative to more complicated double upconversion architectures.The RF output port is single-ended and matched to 50 Ohms with no external components. The LO requires -6 to +6 dBm and can be driven in either differential or single-ended mode. This device is optimized for a +5V supply, and offers improved carrier feedthrough and sideband suppression characteristics.ApplicationsUMTS, GSM or CDMA BasestationsFixed Wireless or WLLISM Transceivers, 900 & 2400 MHzGMSK, QPSK, QAM, SSB ModulatorsCellular/3G and WiMAX/4G
