PSB Series

Manufacturer: Nichicon

Catalog

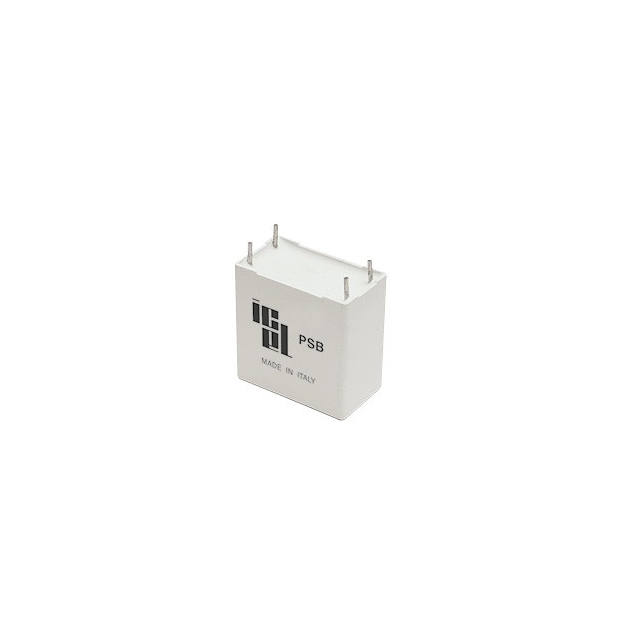

FILM CAPACITORS BOXED. RADIAL 18 X 33 X 32

Part	Voltage Rating - AC	Termination	Package / Case	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Tolerance	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]
Nichicon PSB2253100KHS	725 V	PC Pins	Radial	Polypropylene (PP) Metallized	0.512 "	1.043 in	13 mm	26.5 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	0.886 in	22.5 mm	2.5 kV	2500 V	0.866 in	22 mm	100000 pF
Nichicon PSB1702100KGS	420 V	PC Pins	Radial	Polypropylene (PP) Metallized	0.276 in	1.043 in	7 mm	26.5 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	0.886 in	22.5 mm		700 VDC			100000 pF	13.3 mOhms	16 mm	0.63 in
Nichicon PSB1853820KJL	500 V	PC Pins	Radial	Polypropylene (PP) Metallized					Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	1.476 in	37.5 mm		850 V			0.82 µF	3.8 mOhms	32 mm	1.26 in
Nichicon PSB2303100KJSD	750 V	PC Pins	Radial - 4 Leads	Polypropylene (PP) Metallized	0.866 in	1.673 "	22 mm	42.5 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	1.476 in	37.5 mm	3 kV	3000 V			100000 pF	8.6 mOhms	30 mm	1.181 "
Nichicon PSB2154125KJSD	650 V	PC Pins	Radial - 4 Leads	Polypropylene (PP) Metallized	1.378 in	1.654 in	35 mm	42 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	1.476 in	37.5 mm	1.5 kV	1.5 kV			1.25 µF	2.3 mOhms			1.969 in	50 mm
Nichicon PSB2103150KHL	575 V	PC Pins	Radial	Polypropylene (PP) Metallized	0.512 "	1.26 in	13 mm	32 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	1.083 in	27.5 mm	1 kV	1 kVDC	0.866 in	22 mm	0.15 ÁF	8.2 mOhms
Nichicon PSB2204120KRSD	700 V	PC Pins	Radial - 4 Leads	Polypropylene (PP) Metallized			1.378 in	2.264 in	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	2.067 in	52.5 mm	2 kV	2 kVDC			1.2 µF	2.6 mOhm			1.969 in	50 mm	57.5 mm	35 mm
Nichicon PSB2104470KRSD	575 V	PC Pins	Radial - 4 Leads	Polypropylene (PP) Metallized	1.496 in	2.264 in	38 mm	57.5 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	2.067 in	52.5 mm	1 kV	1 kVDC			4.7 µF	1.8 mOhm			2.264 "	57.5 mm
Nichicon PSB2122330KGL	630 V	PC Pins	Radial	Polypropylene (PP) Metallized	0.276 in	1.043 in	7 mm	26.5 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	0.886 in	22.5 mm	1.2 kV	1200 V			0.033 çF	23 mOhm	16 mm	0.63 in
Nichicon PSB2252470KHL	725 V	PC Pins	Radial	Polypropylene (PP) Metallized	0.591 in	1.26 in	15 mm	32 mm	Through Hole	10 %	DV/DT High Frequency High Pulse Snubber Switching	85 °C	-40 C	1.083 in	27.5 mm	2.5 kV	2500 V				16 mOhm			0.965 in	24.5 mm
