DD1000 Series
Manufacturer: INFINEON
Beta
⌘K

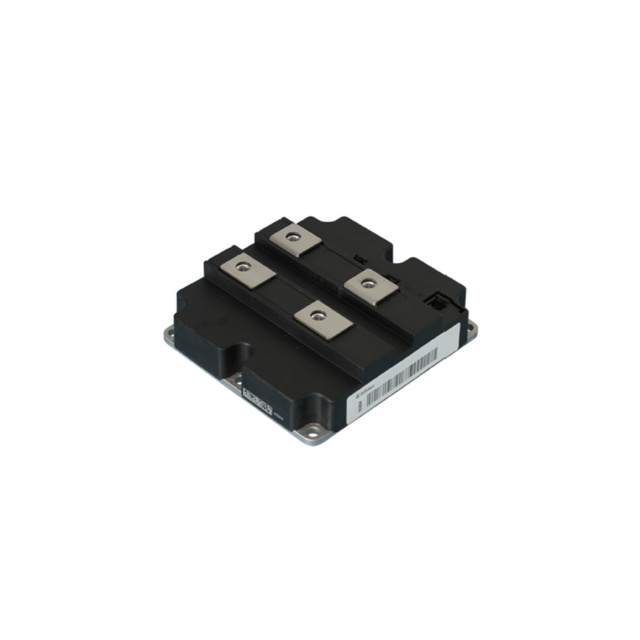

THE DD1000S33HE3 IS A DIODES DIODE MODULE IN A IHV B HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 3300 V AND 1000 A.
| Part | Speed [Min] | Supplier Device Package | Voltage - DC Reverse (Vr) (Max) [Max] | Mounting Type | Technology | Package / Case | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Diode Configuration | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) (per Diode) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 200 mA 500 ns | AG-IHVB130-3 | 3300 V | Chassis Mount | Standard | Module | -40 °C | 150 °C | 2 Independent | 3.85 V | |
INFINEON | 200 mA 500 ns | AG-IHVB130-3 | 3300 V | Chassis Mount | Standard | Module | -40 °C | 150 °C | 2 Independent | 3.85 V | 1000 A |
