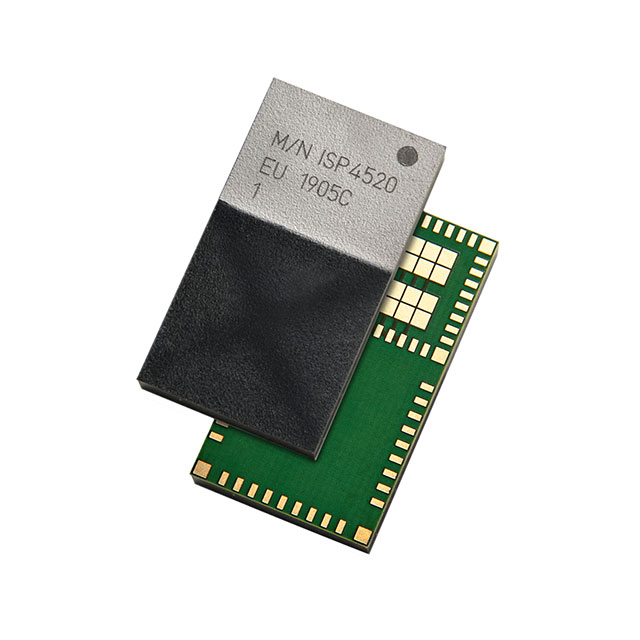

ISP4520 Series

Catalog

RF TXRX MOD BT TH SMD

Part	Protocol	Mounting Type	Sensitivity	RF Family/Standard	Frequency	Frequency (Min)	Frequency (Max)	Frequency (Additional)	Utilized IC / Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Receiving (Min)	Current - Receiving (Max)	Antenna Type	Data Rate	Serial Interfaces	Current - Transmitting (Max)	Current - Transmitting (Min)	Memory Type	Memory Size (SRAM)	Memory Size (Flash)	Package / Case	Power - Output	Frequency Range 3 (Max)	Frequency Range 2 (Min)	Frequency Range 2 (Max)	Frequency Range 3 (Min)	Frequency Range 1 (Min)	Frequency Range 1 (Max)	Supplied Contents	Type	Contents
Insight SIP ISP4520-AS-ST	Bluetooth v5.0 LoRaWAN	Surface Mount	-137 dBm	Bluetooth	2.402GHz ~ 923MHz 2.48GHz 920MHz	2.402 GHz	923 MHz	2.48 GHz 920 MHz	nRF52832	85 °C	-30 °C	3.6 V	1.8 V	4.6 mA	6.1 mA	Integrated Trace	2 Mbps	I2C JTAG SPI	118 mA	5.4 mA	Flash SRAM	64 kB	512 kB	74-SMD Module	14 dBm
Insight SIP ISP4520-US-ST	Bluetooth v5.0 LoRaWAN	Surface Mount	-137 dBm	Bluetooth		2.402 GHz	928 MHz	2.48 GHz 902 MHz	nRF52832	85 °C	-30 °C	3.6 V	1.8 V	4.6 mA	6.1 mA	Integrated Trace	2 Mbps	I2C JTAG SPI	118 mA	5.4 mA	Flash SRAM	64 kB	512 kB	74-SMD Module	22 dBm	2.48 GHz	2.402 GHz	928 MHz	2.48 GHz	902 MHz	902 MHz
Insight SIP ISP4520-EU-DK																																Board(s) Cable(s)	Gateway	Board Cable
Insight SIP ISP4520-US-DK																																Board(s) Cable(s)	Gateway	Board Cable
Insight SIP ISP4520-AS-DK																																Board(s) Cable(s)	Gateway	Board Cable
Insight SIP ISP4520-EU-ST	Bluetooth v5.0 LoRaWAN	Surface Mount	-137 dBm	Bluetooth					nRF52832	85 °C	-30 °C	3.6 V	1.8 V	4.6 mA	6.1 mA	Integrated Trace	2 Mbps	I2C JTAG SPI	118 mA	5.4 mA	Flash SRAM	64 kB	512 kB	74-SMD Module	14 dBm	2.48 GHz	2.402 GHz	870 MHz	2.48 GHz	863 MHz	863 MHz
