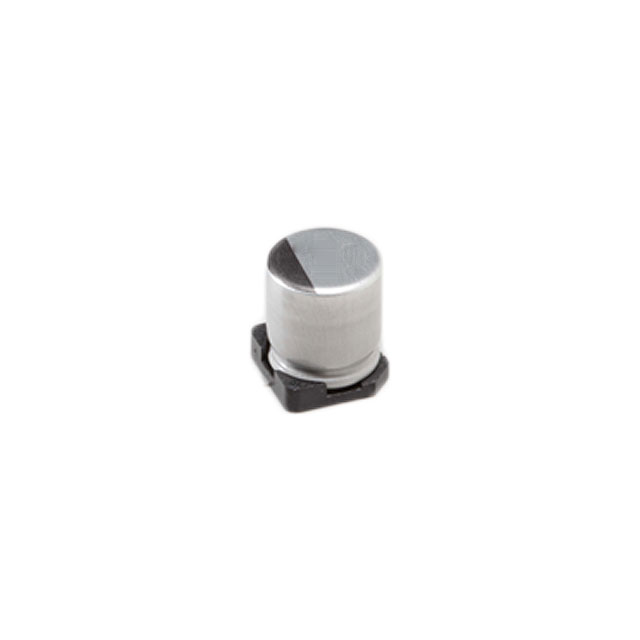

UCH Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SMD 35V 47UF 20% SMD, HIGH VIBRATION
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Lifetime @ Temp. | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Height - Seated (Max) | Height - Seated (Max) [Max] | Tolerance | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | ESR (Equivalent Series Resistance) | Polarization | Applications | Ripple Current @ High Frequency | Voltage - Rated | Ratings | Capacitance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | Radial Can - SMD | 125 °C | -40 C | Surface Mount | 2000 Hrs | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | 8.7 mm | 0.343 in | 20 % | 98.5 mA | 0.248 " | 6.3 mm | 300 mOhm | Polar | Automotive | 197 mA | 35 V | AEC-Q200 | 47 µF | ||
 Nichicon | Radial Can - SMD | 125 °C | -40 C | Surface Mount | 2000 Hrs | 0.327 in | 8.3 mm | 8.3 mm | 0.327 in | 20 % | 135 mA | 0.315 in | 8 mm | 200 mOhm | Polar | Automotive | 270 mA | 35 V | AEC-Q200 | 220 µF | 11 mm | 0.433 in |
