TPS65100 Series
Manufacturer: Texas Instruments
Beta
⌘K
4-CH LCD BIAS W/ FULLY INT. POS. CHARGE PUMP, 3.3V LDO CONTR., 1.6A MIN. BOOST ILIM, FAULT & VCOM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Output | Mounting Type | Package / Case | Applications | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Outputs and Type | Power - Output | Supplied Contents | Board Type | Main Purpose | Utilized IC / Part | Current - Output | Contents | Regulator Topology | Voltage - Output | Frequency - Switching | Voltage - Input | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

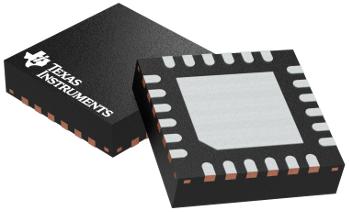

 Texas Instruments | 85 °C | -40 C | 24-VQFN (4x4) | Multiple | Surface Mount | 24-VFQFN Exposed Pad | Controller TFT LCD | 4 | 2.7 V | 5.8 V | ||||||||||||||

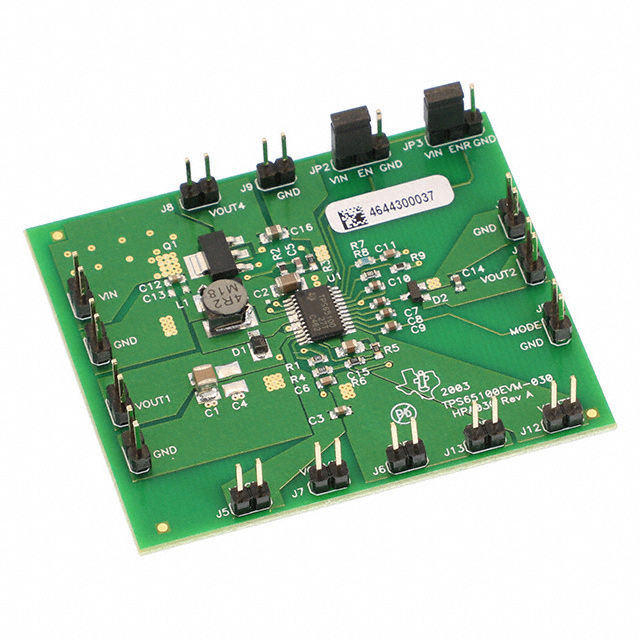

 Texas Instruments | 4 Non-Isolated Outputs Non-Isolated | 4 | 6.81 W | Board(s) | Fully Populated | Special Purpose DC/DC LCD Supply | TPS65100 | 20 mA 300 mA 650 mA | Board(s) | Buck | -5 V 5 V 10 V 23 V | 1.6 MHz | 3.3 V | |||||||||||
 Texas Instruments | 85 °C | -40 C | 24-HTSSOP | Multiple | Surface Mount | 24-PowerTSSOP | Controller TFT LCD | 4 | 2.7 V | 5.8 V | 0.173 in 4.4 mm | |||||||||||||
 Texas Instruments | 85 °C | -40 C | 24-HTSSOP | Multiple | Surface Mount | 24-PowerTSSOP | Controller TFT LCD | 4 | 2.7 V | 5.8 V | 0.173 in 4.4 mm |
