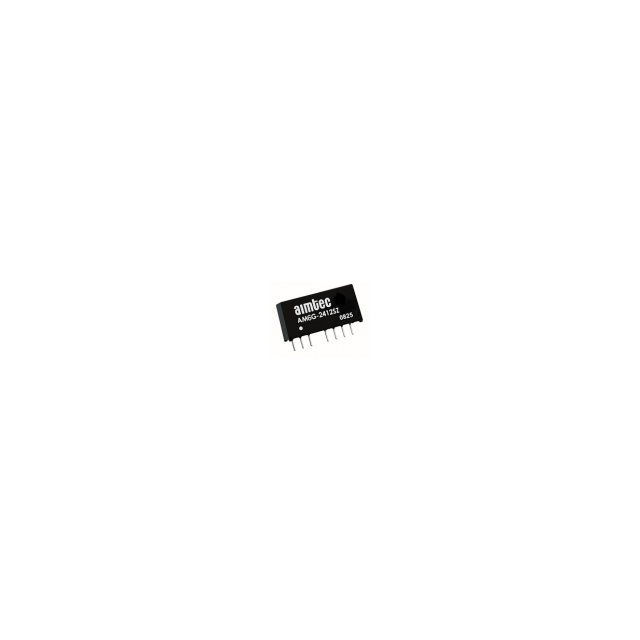

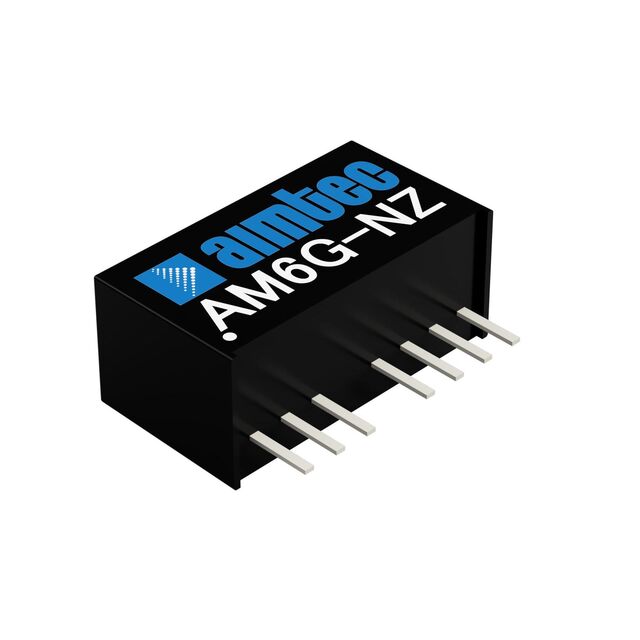

AM6G Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 3.3V 4.5W
| Part | Power (Watts) | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Isolation | Efficiency | Voltage - Output 1 | Type | Package / Case | Number of Outputs | Applications | Features | Current - Output (Max) [Max] | Supplier Device Package | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 4.45 W | Through Hole | 9 V | 1.6 kV | 76 % | 3.3 V | Isolated Module | 8-SIP Module | 1 | ITE (Commercial) | Remote On/Off | 1.35 A | 8-SIP | 18 V | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | -40 C | 105 ░C | ||
 aimtec | 6 W | Through Hole | 4.5 V | 3000 V | 79 % | 5 V | Isolated Module | 8-SIP Module | 1 | ITE (Commercial) | Remote On/Off | 1.2 A | 9 V | 0.44 in | 9.2 mm | 0.86 " | 11.1 mm | 0.36 in | 21.9 mm | -40 C | 85 °C | CE cURus IEC UL | 62368-1 | |
aimtec | 6 W | Through Hole | 9 V | 1.6 kV | 84 % | 24 V | Isolated Module | 8-SIP Module | 1 | ITE (Commercial) | Remote On/Off | 250 mA | 8-SIP | 18 V | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | -40 C | 105 ░C | ||
aimtec | 6 W | Through Hole | 9 V | 1.6 kV | 9 V | Isolated Module | 8-SIP Module | 1 | ITE (Commercial) | Remote On/Off | 667 mA | 8-SIP | 18 V | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | -40 C | 105 ░C | |||
aimtec | 6 W | Through Hole | 18 V | 1.6 kV | 5 V | Isolated Module | 8-SIP Module | 1 | ITE (Commercial) | Remote On/Off | 1.2 A | 8-SIP | 36 V | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | -40 C | 105 ░C |
