DF3-14P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

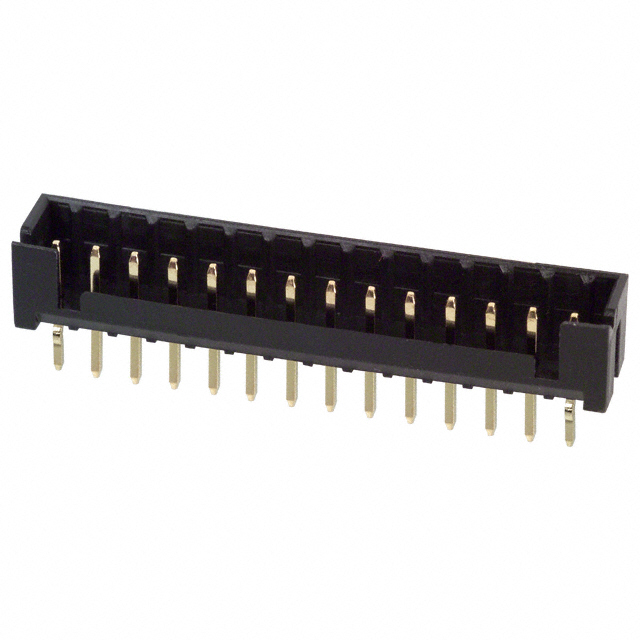

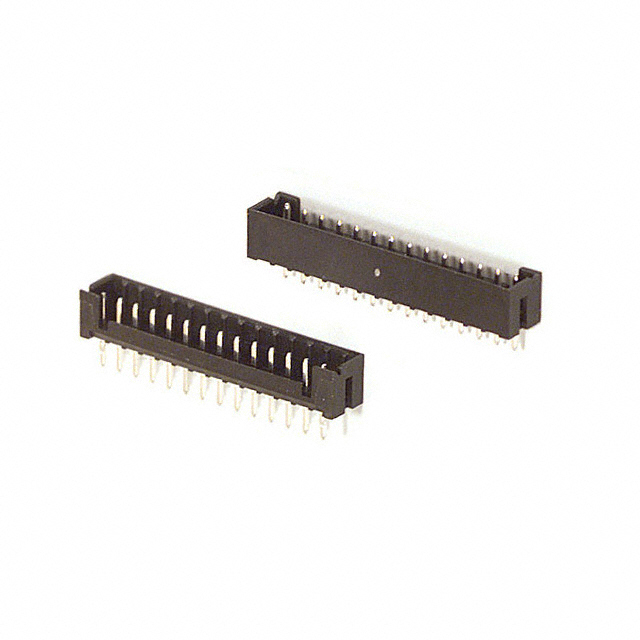

CONN HEADER VERT 14POS 2MM
| Part | Material Flammability Rating | Connector Type | Overall Contact Length | Contact Shape | Mounting Type | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Number of Positions | Fastening Type | Termination | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Shrouding | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Finish - Post | Contact Material | Style | Insulation Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | UL94 V-0 | Header | 0.299 in 7.6 mm | Square | Through Hole | 0.122 in | 3.1 mm | 0.079 " | 2 mm | 14 | Push-Pull | Press-Fit Solder | Male Pin | 0.114 in | 2.9 mm | 3 A | Shrouded - 4 Wall | 0.197 " | 5 mm | All | 1 | -55 C | 105 ░C | Black | Tin | Brass | Board to Board Cable | Nylon Polyamide (PA) | |||
 Hirose Electric Co Ltd | UL94 V-0 | Header | 0.299 in 7.6 mm | Square | Through Hole | 0.122 in | 3.1 mm | 0.079 " | 2 mm | 14 | Push-Pull | Press-Fit Solder | Male Pin | 0.114 in | 2.9 mm | 3 A | Shrouded - 4 Wall | 0.197 " | 5 mm | All | 1 | -55 C | 105 ░C | Black | Brass | Board to Board Cable | Nylon Polyamide (PA) | Gold | 8 µin | 0.203 µm |
