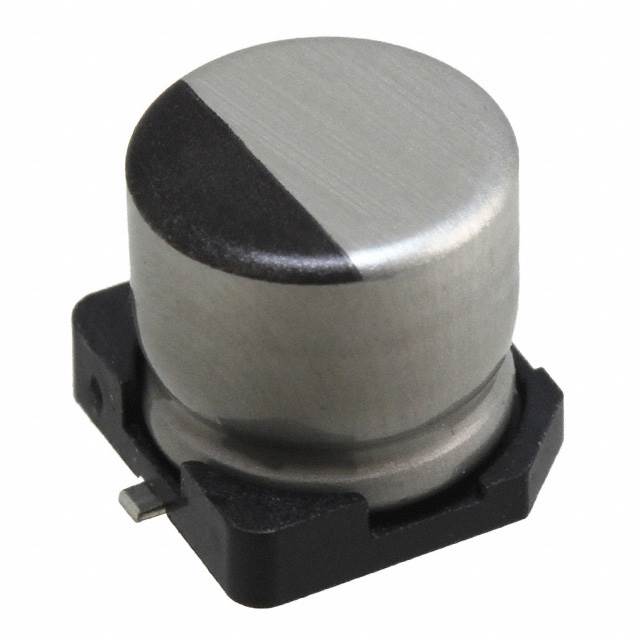

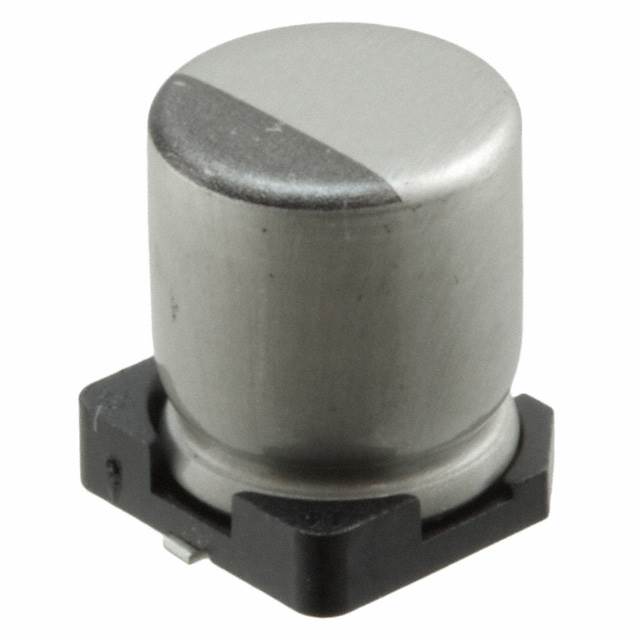

UWD Series

Manufacturer: Nichicon

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 27 ΜF, 16 V, 2000 HOURS @ 85°C, POLAR

Part	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Mounting Type	Capacitance	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Package / Case	Tolerance	Impedance	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Nichicon UWD1C270MCL1GS	150 mA	0.197 in	5 mm	2000 Hrs	0.209 in 5.3 mm	0.209 in 5.3 mm	General Purpose	0.228 "	5.8 mm	AEC-Q200	Surface Mount	27 µF	75 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	760 mOhms	16 V
Nichicon UWD1A560MCL1GS	230 mA	0.248 "	6.3 mm	2000 Hrs	6.6 mm	6.6 mm	General Purpose	0.228 "	5.8 mm	AEC-Q200	Surface Mount	56 µF	115 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	440 mOhms	10 V	0.26 in	0.26 in
Nichicon UWD1E331MCL1GS		0.394 in	10 mm	5000 Hrs	10.3 mm	10.3 mm	General Purpose	0.394 in	10 mm	AEC-Q200	Surface Mount	330 µF	335 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %		25 VDC	0.406 in	0.406 "
Nichicon UWD1E471MCQ1GS		0.394 in	10 mm	5000 Hrs	10.3 mm	10.3 mm	Automotive	0.425 in	10.8 mm	AEC-Q200	Surface Mount	470 µF	335 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %		25 VDC	0.406 in	0.406 "
Nichicon UWD1A220MCL1GS	80 mA	0.157 in	4 mm	2000 Hrs	4.3 mm	4.3 mm	General Purpose	0.228 "	5.8 mm	AEC-Q200	Surface Mount	22 µF	40 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	1.8 Ohms	10 V	0.169 "	0.169 in
Nichicon UWD0J560MCL1GS	150 mA	0.197 in	5 mm	2000 Hrs	0.209 in 5.3 mm	0.209 in 5.3 mm	General Purpose	0.228 "	5.8 mm	AEC-Q200	Surface Mount	56 µF	75 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	760 mOhms	6.3 VDC
Nichicon UWD0J681MCL1GS	450 mA	0.315 in	8 mm	5000 Hrs	8.3 mm	8.3 mm	General Purpose	0.394 in	10 mm	AEC-Q200	Surface Mount	680 µF	225 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	170 mOhms	6.3 VDC	0.327 in	0.327 in
Nichicon UWD0J102MCL1GS		0.394 in	10 mm	5000 Hrs	10.3 mm	10.3 mm	General Purpose	0.394 in	10 mm	AEC-Q200	Surface Mount	1000 µF	335 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %		6.3 VDC	0.406 in	0.406 "
Nichicon UWD1C221MCL1GS	280 mA	0.248 "	6.3 mm	2000 Hrs	6.6 mm	6.6 mm	General Purpose	0.315 in	8 mm	AEC-Q200	Surface Mount	220 µF	140 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	0.34 Ohms	16 V	0.26 in	0.26 in
Nichicon UWD1E560MCL1GS	230 mA	0.248 "	6.3 mm	2000 Hrs	6.6 mm	6.6 mm	General Purpose	0.228 "	5.8 mm	AEC-Q200	Surface Mount	56 µF	115 mA	-55 C	105 ░C	Polar	Radial Can - SMD	20 %	440 mOhms	25 VDC	0.26 in	0.26 in
