SIR871 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

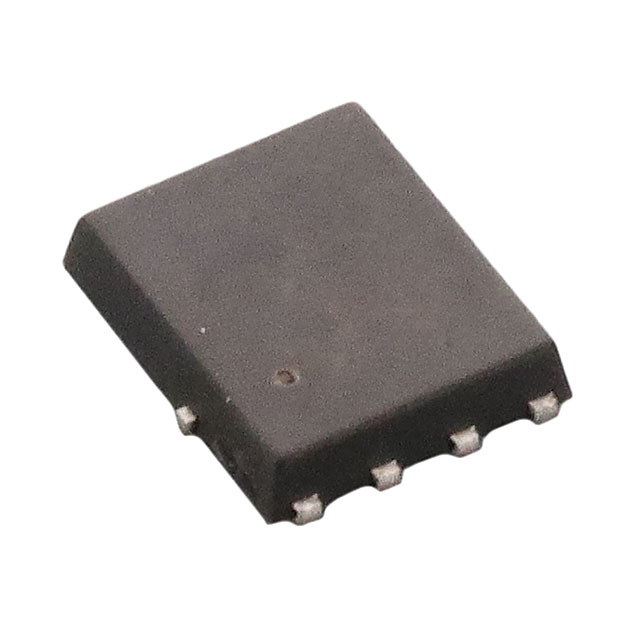

MOSFET P-CH 100V 48A PPAK SO-8
| Part | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs [Max] | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Mounting Type | Drain to Source Voltage (Vdss) | Technology | FET Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 20 V | 90 nC | 4.5 V 10 V | PowerPAK® SO-8 | Surface Mount | 100 V | MOSFET (Metal Oxide) | P-Channel | -55 °C | 150 °C | 48 A | 2.6 V | 20 mOhm | 3395 pF | PowerPAK® SO-8 |
