MSC750SMA170 Series

1700V, 750 mOhm, Discrete mSiC™ MOSFET

Catalog

1700V, 750 mOhm, Discrete mSiC™ MOSFET

Part	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Supplier Device Package	Package / Case	Vgs(th) (Max) @ Id	FET Type	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max) [Max]	Vgs (Max) [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
Microchip Technology MSC750SMA170S	Surface Mount	6 A	1700 V	D3PAK	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA

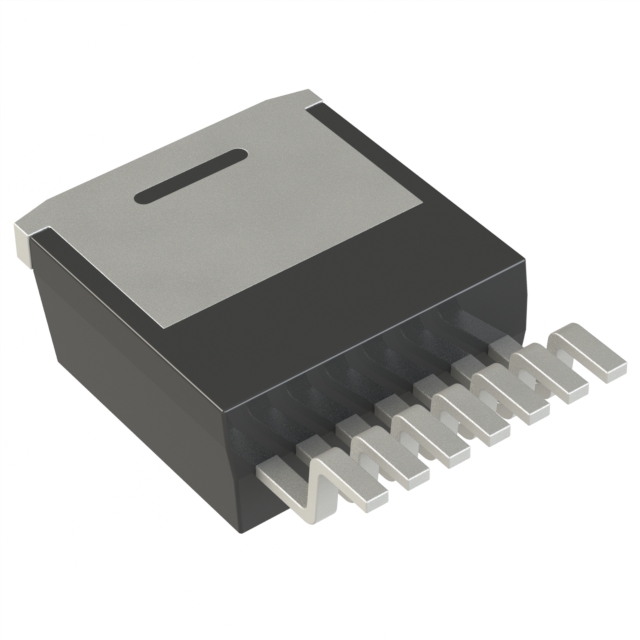

Microchip Technology MSC750SMA170SA	Surface Mount	6 A	1700 V	D2PAK-7	TO-263-8 D2PAK (7 Leads + Tab)	3.25 V	N-Channel	63 W	940 mOhm	-55 °C	175 ░C	23 V	-10 V	11 nC
Microchip Technology MSC750SMA170B	Through Hole	7 A	1700 V	TO-247-3	TO-247-3	3.25 V	N-Channel	68 W	940 mOhm	-55 °C	175 ░C	23 V	-10 V	11 nC	184 pF

Catalog

1700V, 750 mOhm, Discrete mSiC™ MOSFET

Key Features

• * Low capacitances and low gate charge

• * Fast switching speed due to low internal gate resistance (ESR)

• * Stable operation at high junction temperature, TJ(max) = 175°C

• * Fast and reliable body diode

• * Superior avalanche ruggedness

• * RoHS compliant

Description

MSC750SMA170 is part of our newest family of mSiCTM MOSFET devices. Microchip's SiC solutions focus on high performance helping to maximize system efficiency and minimize system weight and size. Microchip's proven SiC reliability also ensures no performance degradation over the life of the end equipment.
