LGU Series

Manufacturer: Nichicon

Catalog

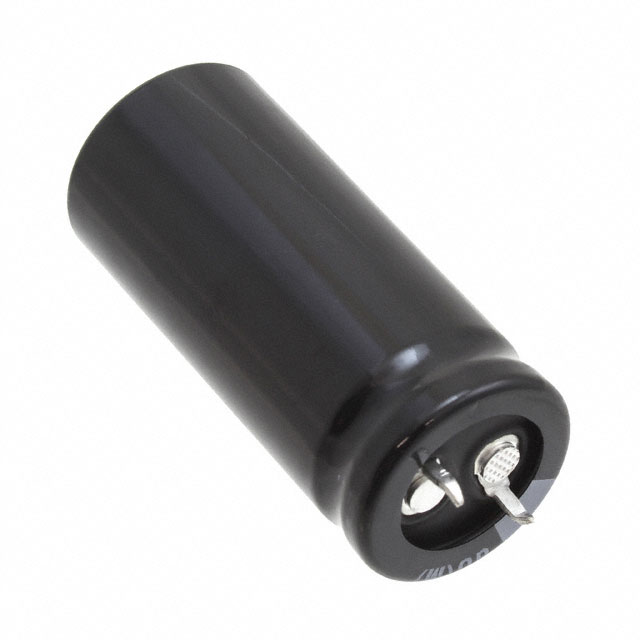

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 400VOLTS 220UF 22X50 20% 10LS

Part	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Mounting Type	Tolerance	Polarization	Capacitance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Package / Case	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Size / Dimension	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon LGU2G221MELZ	1.1 A	1.969 in	50 mm	105 ░C	-25 °C	3000 Hrs	Through Hole	20 %	Polar	220 µF	400 V	0.866 "	22 mm	General Purpose	Radial Can - Snap-In	1.573 A	0.394 in	10 mm

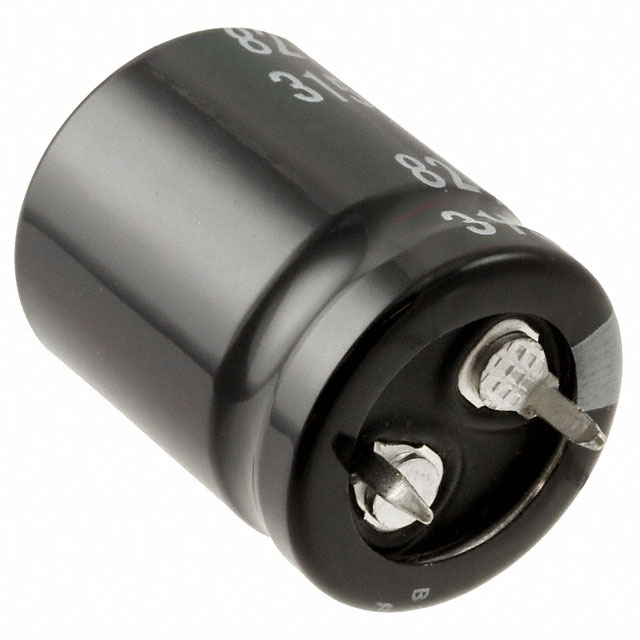

Nichicon LGU2F820MELY	640 mA	1.063 in	27 mm	105 ░C	-25 °C	3000 Hrs	Through Hole	20 %	Polar	0.082 mF	315 V	0.787 "	20 mm	General Purpose	Radial Can - Snap-In		0.394 in	10 mm
Nichicon LGU2E391MELA	1.49 A	1.378 "	35 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	390 µF	250 V	0.984 "	25 mm	General Purpose	Radial Can - Snap-In	2.235 A	0.394 in	10 mm
Nichicon LGU2D391MELY	1.31 A	1.575 in	40 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	390 µF	200 VDC	0.787 "	20 mm	General Purpose	Radial Can - Snap-In	1.965 A	0.394 in	10 mm
Nichicon LGU2Z471MELB	1.5 A	0.984 in	25 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	470 µF	180 VDC	1.181 "		General Purpose	Radial Can - Snap-In	2.25 A	0.394 in	10 mm	30 mm
Nichicon LGU2A392MELC	3.69 A	1.85 in	47 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	3900 µF	100 V	1.378 "	35 mm	General Purpose	Radial Can - Snap-In	4.2435 A	0.394 in	10 mm
Nichicon LGU1H682MELA	3.37 A	1.85 in	47 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	6800 µF	50 VDC	0.984 "	25 mm	General Purpose	Radial Can - Snap-In	3.8755 A	0.394 in	10 mm
Nichicon LGU1K222MELB	2.1 A	1.063 in	27 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	2200 µF	80 V	1.181 "		General Purpose	Radial Can - Snap-In	2.415 A	0.394 in	10 mm	30 mm
Nichicon LGU2D471MELB	1.5 A	0.984 in	25 mm	105 ░C	-40 C	3000 Hrs	Through Hole	20 %	Polar	470 µF	200 VDC	1.181 "		General Purpose	Radial Can - Snap-In	2.25 A	0.394 in	10 mm	30 mm
Nichicon LGU2F331MELA	1.33 A			105 ░C	-25 °C	3000 Hrs	Through Hole	20 %	Polar	330 µF	315 V	0.984 "	25 mm	General Purpose	Radial Can - Snap-In	1.5295 A	0.394 in	10 mm		42 mm	1.654 in
