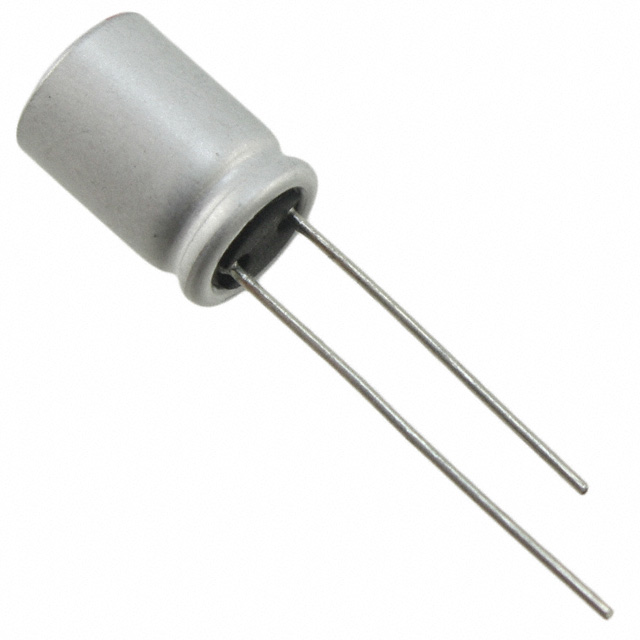

RR5 Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 1000UF 2.5V 20% ULTRA-LOW ESR

Part	Mounting Type	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Type	Tolerance	Lifetime @ Temp.	Package / Case	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon RR50E102MDN1KX	Through Hole	1000 µF	0.315 in	8 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	2.5 V	0.512 "	13 mm	0.138 in	3.5 mm	5 mOhm	-55 C	105 ░C	663 mA
Nichicon RR50J471MDN1	Through Hole	470 µF	0.315 in	8 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	6.3 VDC	0.512 "	13 mm	0.138 in	3.5 mm	5 mOhm	-55 C	105 ░C	663 mA
Nichicon RR50E681MDN1PX	Through Hole	680 µF	0.315 in	8 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	2.5 V	0.512 "	13 mm	0.138 in	3.5 mm	5 mOhm	-55 C	105 ░C	663 mA
Nichicon RR50J471MDN1KX	Through Hole	470 µF	0.315 in	8 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	6.3 VDC	0.512 "	13 mm	0.138 in	3.5 mm	5 mOhm	-55 C	105 ░C	663 mA
Nichicon RR50E821MDN1PX	Through Hole	820 µF	0.315 in	8 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	2.5 V	0.512 "	13 mm	0.138 in	3.5 mm	5 mOhm	-55 C	105 ░C	663 mA
Nichicon RR50G561MDN1PX	Through Hole	560 µF	0.315 in	8 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	4 V	0.512 "	13 mm	0.138 in	3.5 mm	5 mOhm	-55 C	105 ░C	663 mA

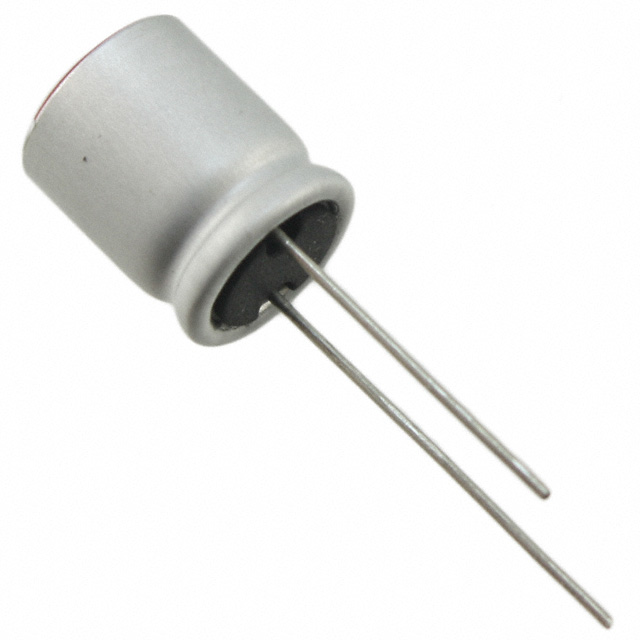

Nichicon RR50G821MDN1PH	Through Hole	0.082 mF	0.394 in	10 mm	General Purpose	Polymer	20 %	2000 Hrs	Can Radial	4 V			0.197 "	5 mm	5 mOhm	-55 C	105 ░C	722 mA	7.22 A	14 mm	0.551 in
