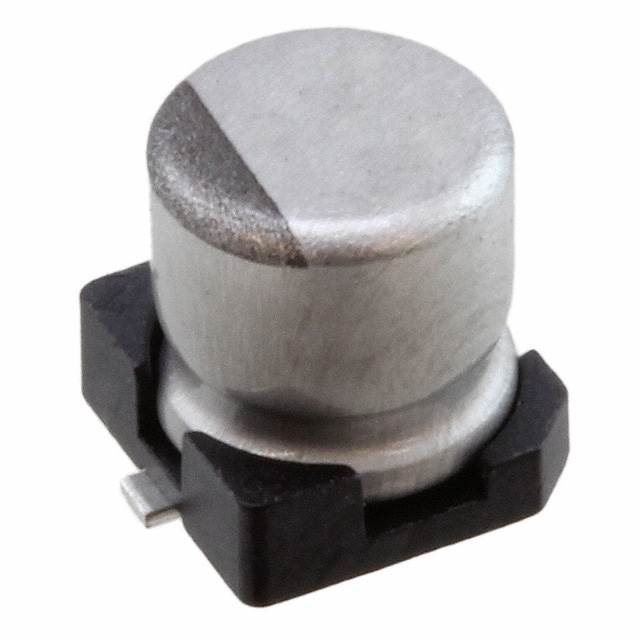

UZT Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 6.3VOLTS 22UF AEC-Q200

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ High Frequency	Ratings	Mounting Type	Applications	Tolerance	Package / Case	Capacitance	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Nichicon UZT1A220MCL1GB	10 V	-40 C	105 ░C	1000 Hrs	24 mA	4.6 mm	0.181 in	0.197 in	5 mm	0.209 in 5.3 mm	0.209 in 5.3 mm	36 mA	AEC-Q200	Surface Mount	General Purpose	20 %	Radial Can - SMD	22 µF
Nichicon UZT1C470MCL1GB	16 V	-40 C	105 ░C	1000 Hrs	44 mA	4.6 mm	0.181 in	0.248 "	6.3 mm	6.6 mm	6.6 mm	66 mA	AEC-Q200	Surface Mount	General Purpose	20 %	Radial Can - SMD	47 µF	0.26 in	0.26 in
Nichicon UZT0J330MCL1GB	6.3 VDC	-40 C	105 ░C	1000 Hrs	26 mA	4.6 mm	0.181 in	0.197 in	5 mm	0.209 in 5.3 mm	0.209 in 5.3 mm	39 mA	AEC-Q200	Surface Mount	General Purpose	20 %	Radial Can - SMD	33 ÁF
Nichicon UZT1HR47MCL1GB	50 VDC	-40 C	105 ░C	1000 Hrs	3.3 mA	4.6 mm	0.181 in	0.157 in	4 mm	4.3 mm	4.3 mm	4.95 mA		Surface Mount	General Purpose	20 %	Radial Can - SMD	0.47 µF	0.169 "	0.169 in
Nichicon UZT1V220MCL1GB	35 V	-40 C	105 ░C	1000 Hrs	36 mA	4.6 mm	0.181 in	0.248 "	6.3 mm	6.6 mm	6.6 mm	54 mA	AEC-Q200	Surface Mount	General Purpose	20 %	Radial Can - SMD	22 µF	0.26 in	0.26 in
