LKX Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 680UF 200V 20% (22 X 45MM) SNAP-IN 10MM 1.75A 2000H 105°C BULK

Part	Ripple Current @ Low Frequency	Tolerance	Capacitance	Ripple Current @ High Frequency	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

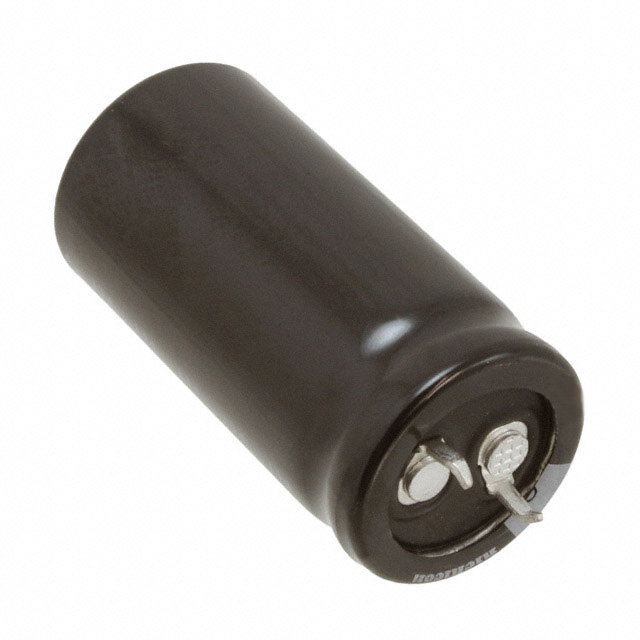

Nichicon LKX2D681MESZ45	1.75 A	20 %	680 µF	2.625 A	200 VDC	1.85 in	47 mm	Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-40 C	105 ░C	0.866 "	22 mm	Through Hole
Nichicon LKX2E471MESA35	1.4 A	20 %	470 µF	2.1 A	250 V			Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-40 C	105 ░C	0.984 "	25 mm	Through Hole	37 mm	1.457 in
Nichicon LKX2G271MESA45	1.22 A	20 %	270 µF	1.7446 A	400 V	1.85 in	47 mm	Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-25 °C	105 ░C	0.984 "	25 mm	Through Hole

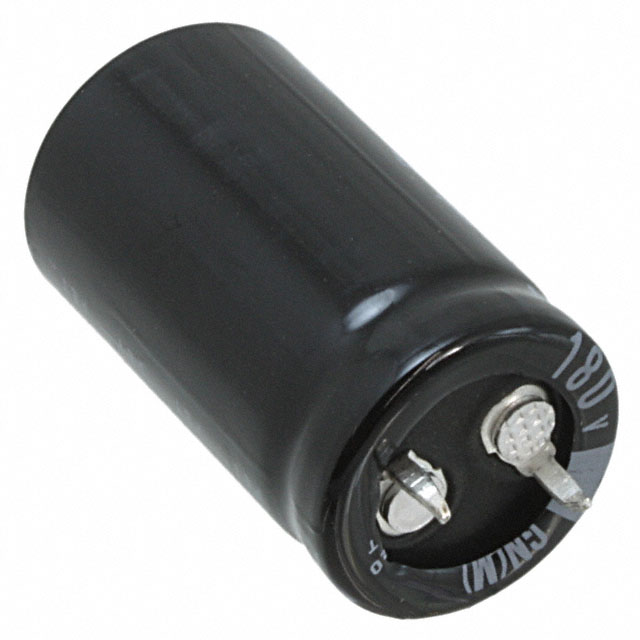

Nichicon LKX2G121MESY35	730 mA	20 %	120 µF	1.0439 A	400 V			Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-25 °C	105 ░C	0.787 "	20 mm	Through Hole	37 mm	1.457 in
Nichicon LKX2D681MESC25	1.75 A	20 %	680 µF	2.625 A	200 VDC	1.063 in	27 mm	Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-40 C	105 ░C	1.378 "	35 mm	Through Hole
Nichicon LKX2E391MESA30	1.3 A	20 %	390 µF	1.95 A	250 V			Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-40 C	105 ░C	0.984 "	25 mm	Through Hole		1.26 in	32 mm
Nichicon LKX2W151MESA25		20 %	150 µF		450 V	1.063 in	27 mm	Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-25 °C	105 ░C	0.984 "	25 mm	Through Hole
Nichicon LKX2D271MESZ25	990 mA	20 %	270 µF	1.485 A	200 VDC	1.063 in	27 mm	Polar	0.394 in	10 mm	2000 Hrs	Audio	Radial Can - Snap-In	-40 C	105 ░C	0.866 "	22 mm	Through Hole
