219-263 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

HEAT SINK, 8 °C/W, TO-263, 25.9 MM, 12.19 MM, 12.7 MM

Part	Attachment Method	Package Cooled	Width [x]	Width [x]	Material	Thermal Resistance @ Forced Air Flow	Material Finish	Type	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise	Length	Length	Shape [custom]	Shape [custom]	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]
Wakefield Thermal Solutions 219-263A-TR	Solderable Feet	TO-263 (D²PAK)	25.91 mm	1.02 in	Aluminum	8 °C/W	Black Anodized	Top Mount	12.19 mm	0.48 in	2 W	12.7 mm	0.5 in	Rectangular	Fins
Wakefield Thermal Solutions 219-263B-TR	Solderable Feet	TO-263 (D˛Pak)			Aluminum	8 °C/W	Black Anodized	Top Mount			2 W	12.7 mm	0.5 in	Rectangular	Fins	35.25 mm	1.386 in	0.46 "	11.68 mm
Wakefield Thermal Solutions 219-263B-TR	Solderable Feet	TO-263 (D²PAK)			Aluminum	8 °C/W	Black Anodized	Top Mount			2 W	12.7 mm	0.5 in	Rectangular	Fins	35.25 mm	1.386 in	0.46 "	11.68 mm

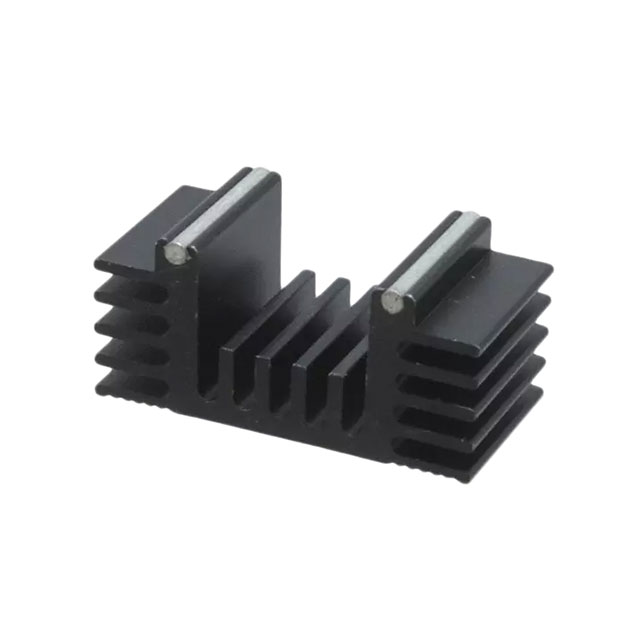

Wakefield Thermal Solutions 219-263A	Solderable Feet	TO-263 (D²PAK)	25.91 mm	1.02 in	Aluminum	8 °C/W	Black Anodized	Top Mount	12.19 mm	0.48 in	2 W	12.7 mm	0.5 in	Rectangular	Fins
Wakefield Thermal Solutions 219-263B	Solderable Feet	TO-263 (D²PAK)			Aluminum	8 °C/W	Black Anodized	Top Mount			2 W	12.7 mm	0.5 in	Rectangular	Fins	35.25 mm	1.386 in	0.46 "	11.68 mm
Wakefield Thermal Solutions 219-263B	Solderable Feet	TO-263 (D˛Pak)			Aluminum	8 °C/W	Black Anodized	Top Mount			2 W	12.7 mm	0.5 in	Rectangular	Fins	35.25 mm	1.386 in	0.46 "	11.68 mm
Wakefield Thermal Solutions 219-263A	Solderable Feet	TO-263 (D˛Pak)	25.91 mm	1.02 in	Aluminum	8 °C/W	Black Anodized	Top Mount	12.19 mm	0.48 in	2 W	12.7 mm	0.5 in	Rectangular	Fins
Wakefield Thermal Solutions 219-263A-TR	Solderable Feet	TO-263 (D˛Pak)	25.91 mm	1.02 in	Aluminum	8 °C/W	Black Anodized	Top Mount	12.19 mm	0.48 in	2 W	12.7 mm	0.5 in	Rectangular	Fins
