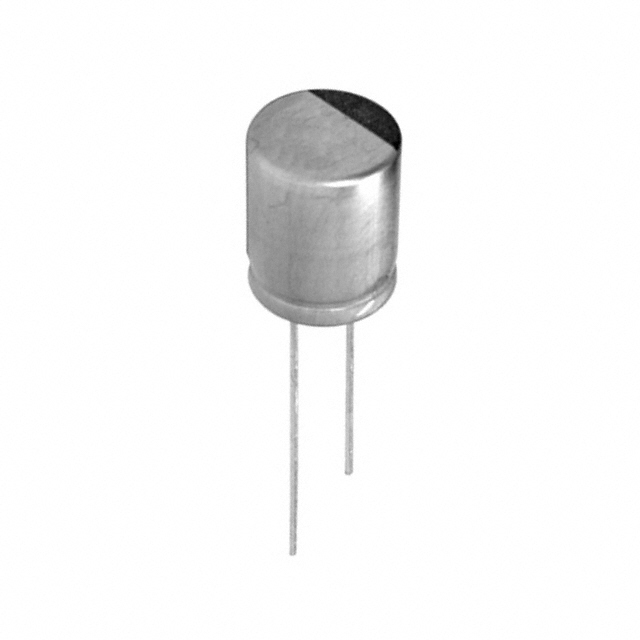

PLG Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 1200UF 4V 20% ALUMINUM CAPACITOR

Part	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Applications	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Type	Package / Case	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max)
Nichicon PLG0G122MCO1TD	20 %	9 mm	0.354 in	9 mOhms	2000 Hrs	0.138 in	3.5 mm	General Purpose	Through Hole	0.315 in	8 mm	1.2 mF	Polymer	Can Radial	4 V	-55 C	105 ░C	5.9 A
Nichicon PLG0G122MCO1	20 %	9 mm	0.354 in	9 mOhms	2000 Hrs	0.138 in	3.5 mm	General Purpose	Through Hole	0.315 in	8 mm	1.2 mF	Polymer	Can Radial	4 V	-55 C	105 ░C	5.9 A
Nichicon PLG1C471MDO1	20 %		0.472 in	11 mOhm	2000 Hrs	0.138 in	3.5 mm	General Purpose	Through Hole	0.315 in	8 mm	470 µF	Polymer	Can Radial	16 V	-55 C	105 ░C	5.4 A	12 mm
