A3-12DA Series

Catalog

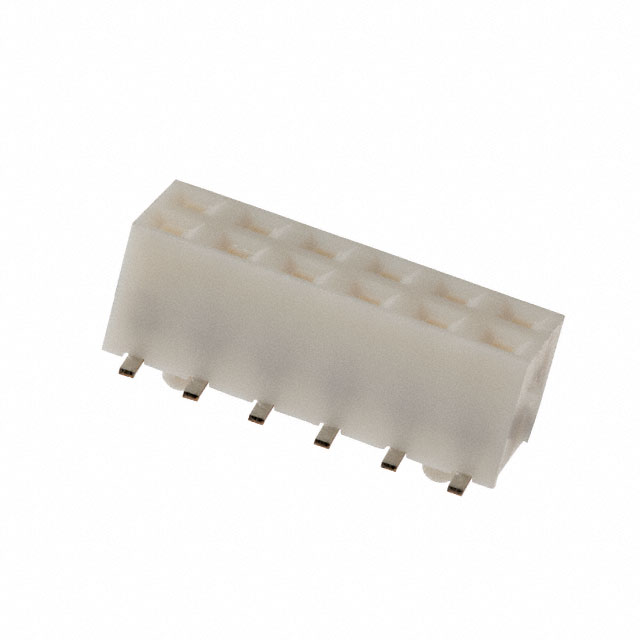

CONN RCPT 12POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Post	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Insulation Color	Connector Type	Style	Contact Finish - Mating	Voltage Rating	Number of Positions	Fastening Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating
Hirose Electric Co Ltd A3-12DA-2SV(71)	39.4 çin	1 çm	Square	Polyphenylene Sulfide (PPS)	Phosphor Bronze	General Purpose Telecommunications	8 µin	0.203 µm	2	All	Tin	5.1 mm 6 mm	-55 C	85 °C	Solder	Surface Mount	Brown	Receptacle	Board to Board Cable	Gold	200 VAC	12	Push-Pull	UL94 V-0	0.165 in	4.2 mm	Female Socket	2 mm	0.079 in	0.079 "	2 mm
Hirose Electric Co Ltd A3-12DA-2SV	39.4 çin	1 çm	Square	Polyphenylene Sulfide (PPS)	Phosphor Bronze	General Purpose Telecommunications	8 µin	0.203 µm	2	All	Tin	5.1 mm 6 mm	-55 C	85 °C	Solder	Surface Mount	Brown	Receptacle	Board to Board Cable	Gold	200 VAC	12	Push-Pull	UL94 V-0	0.165 in	4.2 mm	Female Socket	2 mm	0.079 in	0.079 "	2 mm
