IQD009 Series
Manufacturer: INFINEON
Beta
⌘K

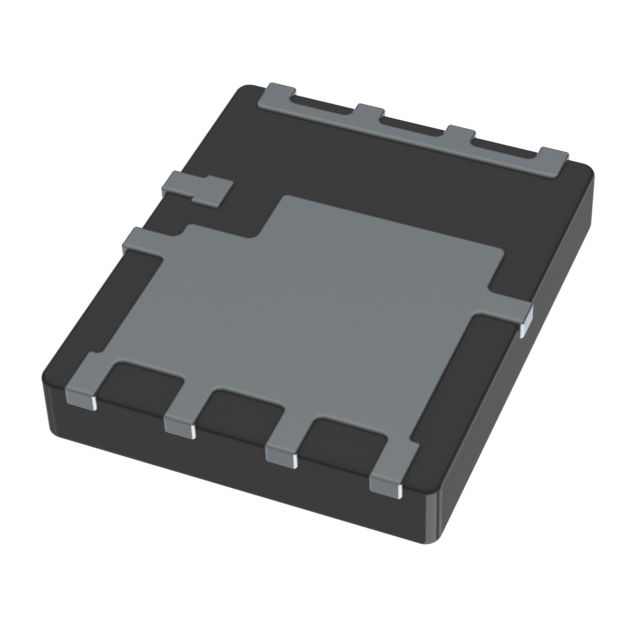

60 V MOSFET PQFN 5X6MM2 SOURCE DOWN PACKAGE WITH VERY LOW RDS(ON).
| Part | Input Capacitance (Ciss) (Max) @ Vds [Max] | Package / Case | Supplier Device Package | FET Type | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Power Dissipation (Max) | Power Dissipation (Max) | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 12000 pF | 9-PowerTDFN | PG-TTFN-9-U02 | N-Channel | 3.3 V | 60 V | Surface Mount | 42 A 445 A | 0.9 mOhm | 150 nC | 175 °C | -55 °C | 333 W | 3 W | 20 V | 6 V 10 V | MOSFET (Metal Oxide) |
