TDR 3 Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - SMD 3W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT OVERMOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Type | Package / Case | Voltage - Isolation | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Current - Output (Max) [Max] | Applications | Voltage - Input (Min) [Min] | Power (Watts) | Voltage - Input (Max) [Max] | Efficiency | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

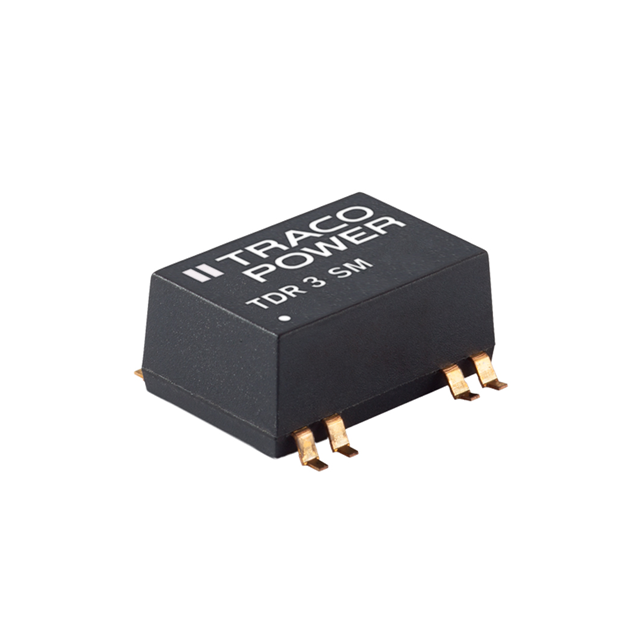

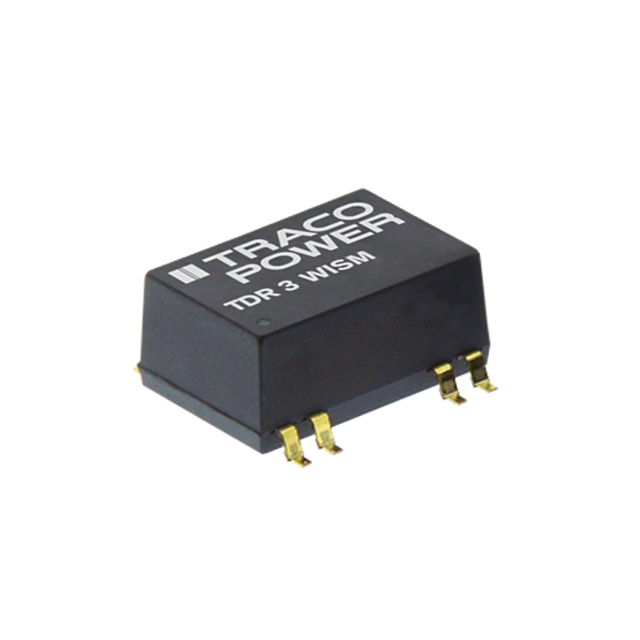

 Traco Power | -40 °C | 85 °C | Remote On/Off SCP | Surface Mount | 14-SMD Module 7 Leads | 1.6 kV | 1 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 12 V | 250 mA | ITE (Commercial) | 18 V | 3 W | 36 V | |||||

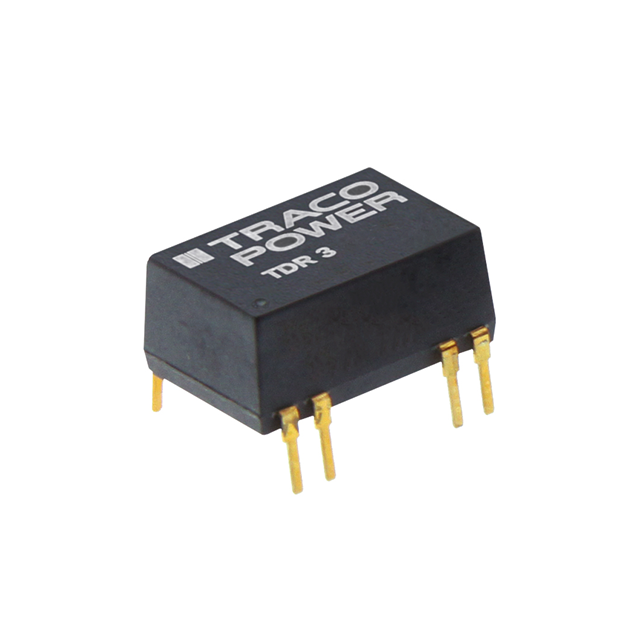

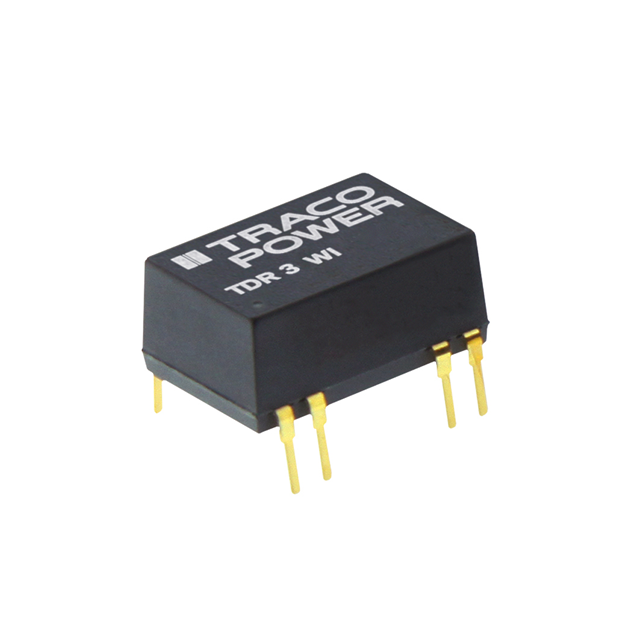

 Traco Power | -40 C | 85 °C | Remote On/Off SCP | Through Hole | 14-DIP Module 7 Leads | 1.6 kV | 2 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 12 V | ITE (Commercial) | 18 V | 3 W | 36 V | 83 % | 125 mA | -12 V | |||
 Traco Power | -40 C | 85 °C | Remote On/Off SCP | Through Hole | 14-DIP Module 7 Leads | 1.6 kV | 1 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 5 V | 600 mA | ITE (Commercial) | 9 V | 3 W | 18 V | 81 % | ||||
Traco Power | -40 C | 85 °C | Remote On/Off SCP | Through Hole | 14-DIP Module 7 Leads | 1.6 kV | 1 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 12 V | 250 mA | ITE (Commercial) | 4.5 V | 3 W | 9 V | 80 % | ||||
Traco Power | -40 °C | 85 °C | Remote On/Off SCP | Surface Mount | 14-SMD Module 7 Leads | 1.6 kV | 2 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 12 V | ITE (Commercial) | 18 V | 3 W | 36 V | 83 % | 125 mA | -12 V | |||
Traco Power | -40 °C | 85 °C | Remote On/Off SCP | Surface Mount | 14-SMD Module 7 Leads | 1.6 kV | 1 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 5 V | 600 mA | ITE (Commercial) | 4.5 V | 3 W | 9 V | 79 % | ||||
Traco Power | -40 °C | 85 °C | Remote On/Off SCP | Surface Mount | 14-SMD Module 7 Leads | 1.6 kV | 2 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 15 V | ITE (Commercial) | 4.5 V | 3 W | 9 V | 81 % | -15 V | 100 mA | 100 mA | ||
 Traco Power | -40 C | 85 °C | Remote On/Off SCP | Through Hole | 14-DIP Module 7 Leads | 1.6 kV | 1 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 12 V | 250 mA | ITE (Commercial) | 4.5 V | 3 W | 18 V | |||||
 Traco Power | -40 C | 85 °C | Remote On/Off SCP | Surface Mount | 14-SMD Module 7 Leads | 1.6 kV | 2 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 15 V | ITE (Commercial) | 9 V | 3 W | 36 V | 81 % | -15 V | 100 mA | 100 mA | ||
Traco Power | -40 C | 85 °C | Remote On/Off SCP | Through Hole | 14-DIP Module 7 Leads | 1.6 kV | 2 | Isolated Module | 12.8 mm | 8.7 mm | 0.74 " | 18.9 mm | 0.5 " | 0.34 in | 15 V | ITE (Commercial) | 18 V | 3 W | 75 V | 81 % | -15 V | 100 mA | 100 mA |
