C8112 Series
Manufacturer: Prysmian Group
Beta
⌘K

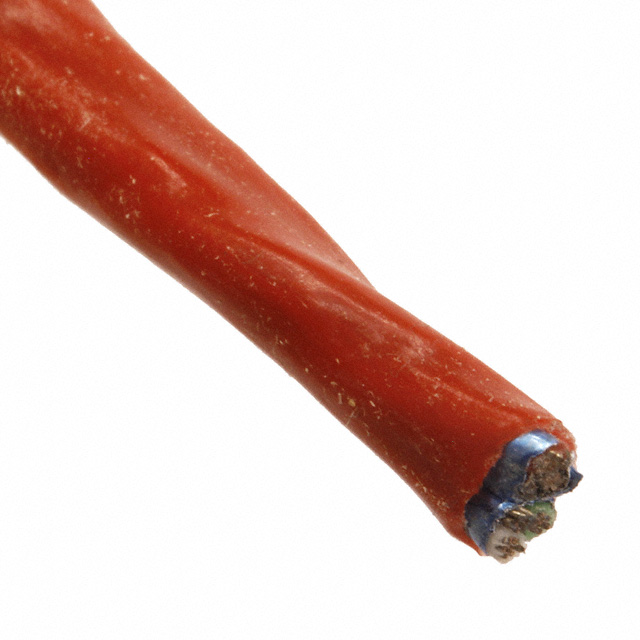

MULTI-PAIR 4COND 22AWG RED 100'
| Part | Length [x] | Length [x] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Length | Length | Conductor Material | Shield Type | Number of Conductors | Features | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 ft | 30.5 m | 300 VDC | 30 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Tinned | Foil | 4 | Drain Wire Flame Retardant | -40 C | 200 °C | 22 AWG | Multi-Pair | 0.014 in | 0.356 mm | Red | Fluorinated Ethylene-Propylene (FEP) | Communication Control | 0.186 " | 4.72 mm | ||
Prysmian Group | 100 ft | 30.5 m | 300 VDC | 30 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) | 304.8 m | 1000 ft | Copper Tinned | Foil | 4 | Drain Wire Flame Retardant | -40 C | 200 °C | 22 AWG | Multi-Pair | 0.014 in | 0.356 mm | Red | Fluorinated Ethylene-Propylene (FEP) | Communication Control | 0.186 " | 4.72 mm | Flexfoil® | 100 % |
