HA16PRK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG FMALE 3P SOLDER CUP
| Part | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Color | Primary Material | Contact Finish - Mating | Current Rating (Amps) | Shell Size - Insert | Connector Type | Shielding | Shell Finish | Insert Material [custom] | Insert Material [custom] | Mounting Feature | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Orientation | Voltage Rating | Contact Material | Shell Material | Fastening Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

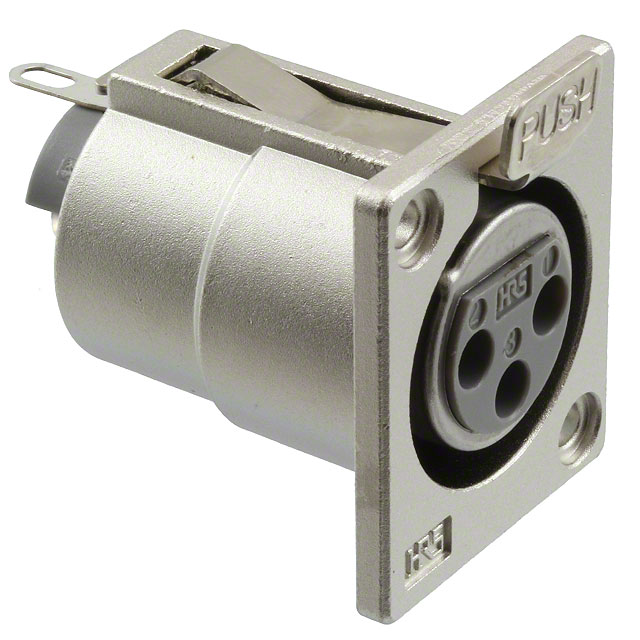

 Hirose Electric Co Ltd | UL94 V-0 | 78.7 µin | 2 µm | Ground | Silver | Metal | Silver | 15 A | 16 | Plug Female Sockets | Shielded | Nickel | Nylon | Polyamide (PA) | Flange | Panel Mount | -25 °C | 70 °C | Industrial | Keyed | 130 VAC 180 VDC | Phosphor Bronze | Aluminum Alloy | Latch Lock | |

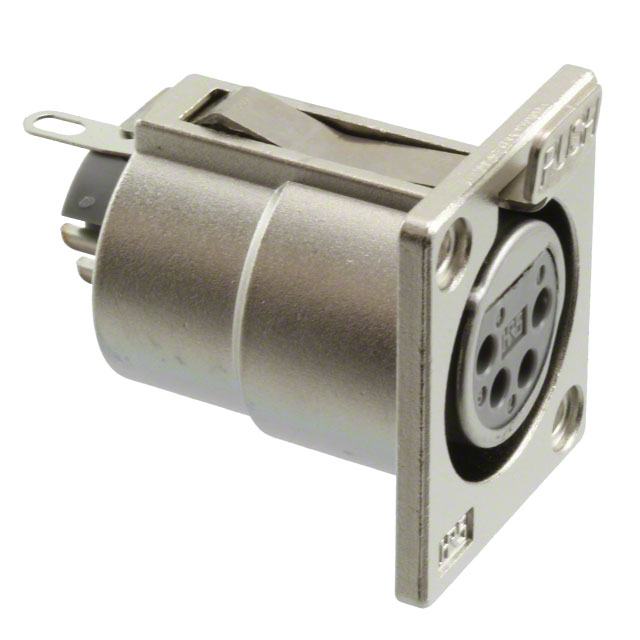

 Hirose Electric Co Ltd | UL94 V-0 | Ground | Silver | Metal | Silver | 5 A | 16 | Plug Female Sockets | Shielded | Nickel | Flange | Panel Mount | -25 °C | 70 °C | Keyed | 130 VAC 180 VDC | Copper Alloy | Aluminum or Zinc Alloy | Latch Lock | 4 |
