BXRB-56 Series
Manufacturer: BRIDGELUX
Beta
⌘K

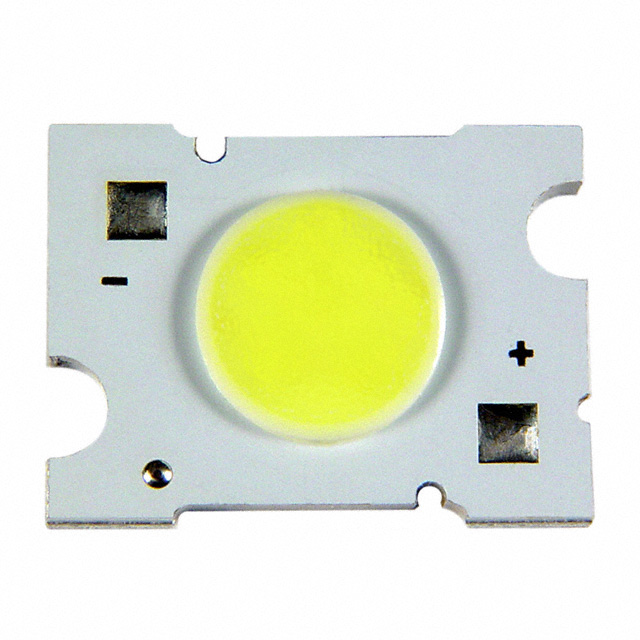

LED COB LS CL WHT SQUARE 5600K
| Part | Viewing Angle | Color | Configuration | Current - Test | CCT (K) | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Lens Type | Size / Dimension [y] | Size / Dimension [x] | Type | Light Emitting Surface (LES) [diameter] | Current - Max [Max] | Luminous Flux @ Current/Temperature | Height [z] | CRI (Color Rendering Index) | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 140 ° | Cool White | Square | 365 mA | 5600 K | 115 lm/W | 12.4 V | Domed | 17.8 mm | 13.6 mm | Chip On Board (COB) | 8 mm | 500 mA | 520 lm | 4.6 mm | 70 | 25 °C |
 BRIDGELUX | 120 ° | Cool White | Starboard | 350 mA | 5600 K | 107 lm/W | 25.7 V | Domed | 19.9 mm | 19.9 mm | Chip On Board (COB) | 10.5 mm | 700 mA | 1070 lm | 3.2 mm | 70 | 25 °C |
BRIDGELUX | 140 ° | Cool White | Square | 730 mA | 5600 K | 115 lm/W | 6.2 V | Domed | 17.8 mm | 13.6 mm | Chip On Board (COB) | 8 mm | 1 A | 520 lm | 4.6 mm | 70 | 25 °C |
