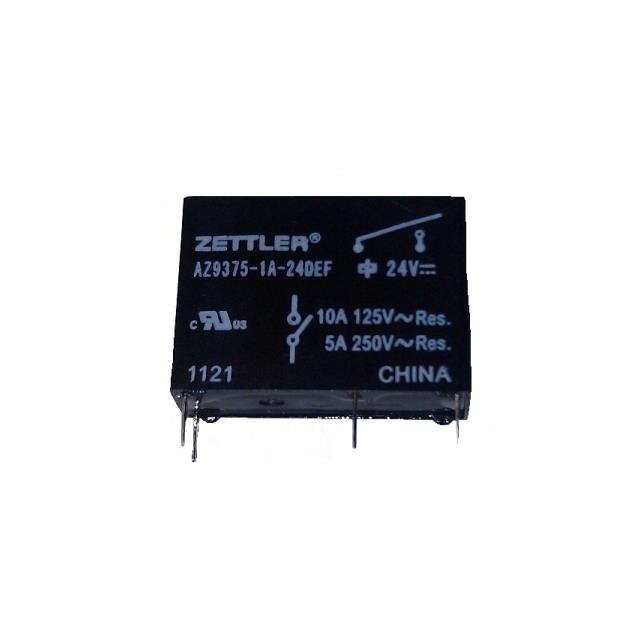

AZ9375-1A Series

Catalog

RELAY GEN PURPOSE SPST 10A 12V

Part	Coil Resistance	Coil Current	Coil Type	Mounting Type	Operate Time	Termination Style	Relay Type	Approval Agency	Coil Insulation	Switching Voltage [Max]	Load - Max Switching	Seal Rating	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Release Time	Contact Material
American Zettler AZ9375-1AE-12DEF	720 Ohms	16.7 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA	Sealed - Fully	9 VDC	1.2 VDC	10 A	12 VDC	90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Tin Oxide (AgSnO)
American Zettler AZ9375-1A-5DE	125 Ohms	40 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA	Sealed - Fully	3.75 VDC	0.5 VDC	10 A	5 VDC	90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Nickel (AgNi)
American Zettler AZ9375-1A-5DEF	125 Ohms	40 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA	Sealed - Fully	3.75 VDC	0.5 VDC	10 A	5 VDC	90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Nickel (AgNi)
American Zettler AZ9375-1A-9DEF	405 Ohms	22.2 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA	Sealed - Fully	6.75 VDC	0.9 VDC	10 A	9 VDC	90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Nickel (AgNi)
American Zettler AZ9375-1A-24DF		8.6 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA		18 VDC	2.4 VDC	10 A	24 VDC	90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Nickel (AgNi)
American Zettler AZ9375-1A-6DEF	180 Ohms	33.3 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA	Sealed - Fully	4.5 VDC	0.6 VDC	10 A		90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Nickel (AgNi)
American Zettler AZ9375-1A-24DE		8.6 mA	Non Latching	Through Hole	10 ms	PC Pin	General Purpose	CSA TUV UL	Class F	30 VDC 277 VAC	150 W 1250 VA	Sealed - Fully	18 VDC	2.4 VDC	10 A	24 VDC	90 °C	-40 C	SPST-NO (1 Form A)	4 ms	Silver Nickel (AgNi)
